PIONEER COMPUTER, INC.

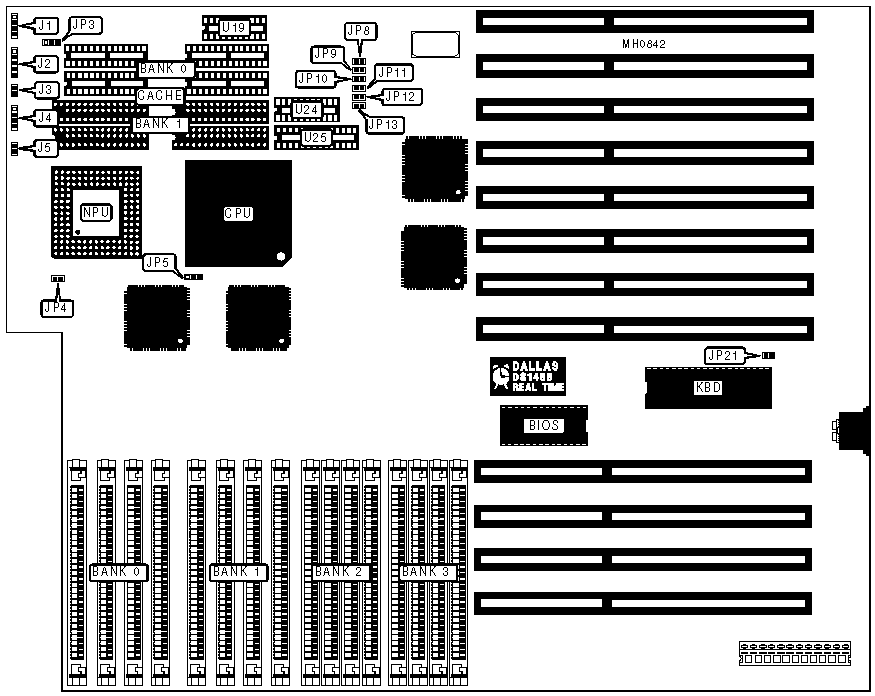

VANTAGE 486WB DX-33/50 DX2-50/66 EISA
|
Processor |
80486DX/80486DX2 |
|
Processor Speed |
25/33/50/66(internal)MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
256MB |
|
Cache |
64/128/256/512KB |
|
BIOS |
AMI |
|
Dimensions |
365mm x 288mm |
|
I/O Options |
None |
|
NPU Options |
4167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J1 |
Turbo LED |
J4 |
|
Power LED & keylock |
J2 |
Reset switch |
J5 |
|
Turbo switch |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
JP4 |
Open |
| » |
CPU installed select 80486DX/80486DX2 |
JP5 |
pins 1 & 2 closed |
|
CPU installed select ODP486SX-66 |
JP5 |
pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP21 |
Open |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
28MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
28MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
36MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
36MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
40MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
40MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
52MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
52MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
64MB |
(4) 16M x 9 |
NONE |
NONE |
NONE |
|
128MB |
(4) 16M x 9 |
(4) 16M x 9 |
NONE |
NONE |
|
192MB |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
NONE |
|
256MB |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U19 & U24 |
Dirty Bit (U25) |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(2) 16K x 1 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(2) 16K x 1 |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(2) 16K x 1 |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
NONE |
(2) 64K x 1 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||||
|
Size |
JP3 |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
|
0KB |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
64KB |
2 & 3 |
Open |
Open |
Open |
Open |
Open |
Open |
|
128KB |
2 & 3 |
Open |
Open |
Closed |
Closed |
Open |
Open |
|
256KB |
2 & 3 |
Open |
Closed |
Closed |
Closed |
Closed |
Open |
|
512KB |
1 & 2 |
Closed |
Closed |
Closed |
Closed |
Closed |
Closed |
|
Note: Pins designated should be in the closed position. | |||||||
