QUICK TECHNOLOGY, INC.
486-50/40/33WB
|
Processor |
80486DX |
|
Processor Speed |
33/50MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
256KB |
|
BIOS |
AMI |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
32-bit external memory card slot |
|
NPU Options |
4167 |
|

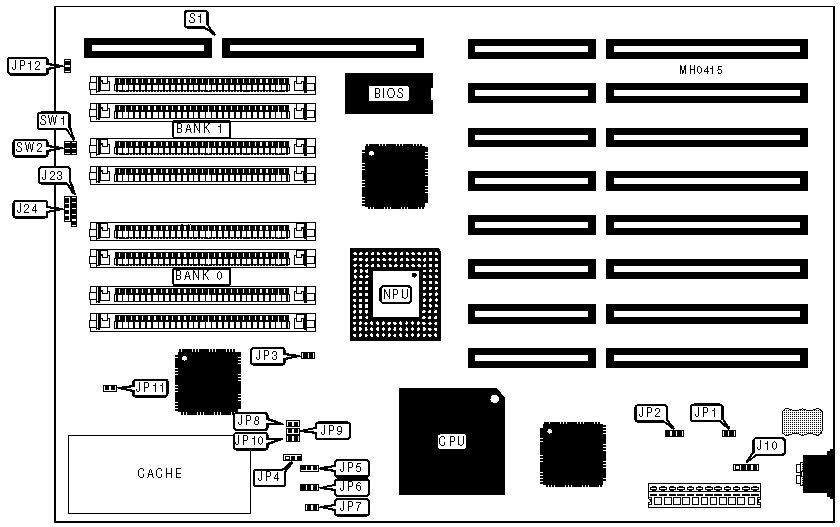

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
JP12 |
Power LED & keylock |
J23 |
|
Reset switch |
SW1 |
Speaker |
J24 |
|
Turbo switch |
SW2 |
32-bit external memory card |
S1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Battery select internal |
J10 |
pins 2 & 3 closed |
|
Battery select external |
J10 |
Closed | |
| » |
Monitor type select color |
JP1 |
Closed |
|
Monitor type select monochrome |
JP1 |
Open | |
| » |
CMOS memory normal operation |
JP2 |
pins 2 & 3 closed |
|
CMOS memory clear |
JP2 |
pins 1 & 2 closed | |
| » |
Bus speed select ATCLK/4 |
JP3 |
Open |
|
Bus speed select ATCLK/6 |
JP3 |
Closed | |
| » |
CPU speed select iOSC/2 (33MHz) |
JP4 |
pins 2 & 3 closed |
|
CPU speed select iOSC/1 (66MHz) |
JP4 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1 M x 9 |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
7MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
9MB |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
13MB |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
24MB |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
28MB |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
36MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
52MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
Note:Banks 2 & 3 are utilized when an external memory card is installed at S1. | ||||
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
TAG (U33) |
TAG (U34) |
|
64KB |
(8) 8K x 8 |
(1) 64K x 1 |
(1) 8K x 8 |
|
256KB |
(8) 32 K x 8 |
(1) 64K x 1 |
(1) 32K x 8 |
|
Note:Location of cache chips are unknown. | |||
|
CACHE JUMPER CONFIGURATION | ||||
|
Size |
JP8 |
JP9 |
JP10 |
JP11 |
|
64KB |
Open |
Open |
Open |
Open |
|
256KB |
Closed |
Closed |
Open |
Closed |
|
CPU TYPE CONFIGURATION | |||
|
Type |
JP5 |
JP6 |
JP7 |
|
80486SX |
Open |
pins 2 & 3 closed |
Open |
|
80486DX |
pins 2 & 3 closed |
pins 1 & 2 closed |
Closed |
