Processor	80386DX
Processor Speed	25/33/40MHz
Chip Set	C & T Peak DM
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	330mm x 215mm
I/O Options	None
NPU Options	80387/3167

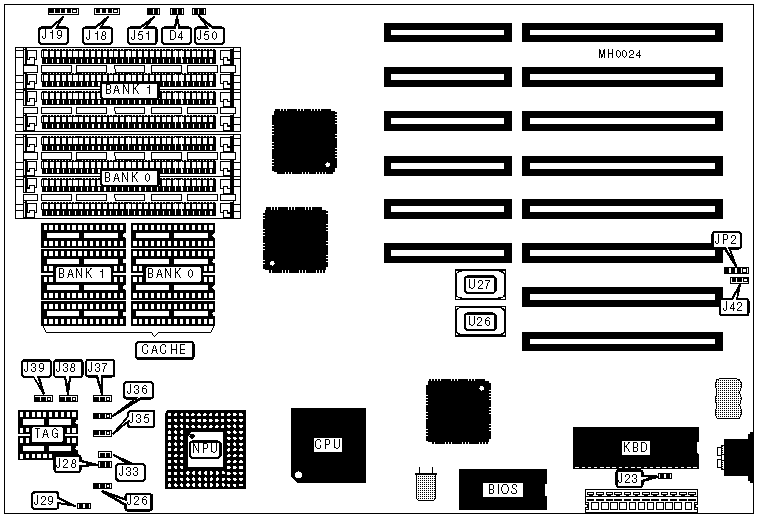

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo LED	D4	Turbo switch	J50
Speaker	J18	Reset switch	J51
Power LED & keylock	J19	External battery	JP2

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type set color	J23	Closed
	Monitor type set monochrome	J23	Open
»	CMOS memory normal operation	J42	pins 2 & 3 closed
	CMOS memory clear	J42	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	Tag
64KB	(4) 8K x 8	(4) 8K x 8	(2) 16K x 4
128KB	(4) 32K x 8	NONE	(2) 64K x 4
256KB	(4) 32K x 8	(4) 32K x 8	(2) 64K x 4
Note:Use tag chips without output enable.

CACHE JUMPER CONFIGURATION
Size	J26	J28	J29	J33	J35	J36	J37	J38	J39
64K	1 & 2	Open	Closed	Closed	Open	Open	2 & 3	1 & 2	1 & 2
128K	2 & 3	Open	Closed	Open	Open	1 & 2	1 & 2	2 & 3	2 & 3
256K	2 & 3	Closed	Open	Open	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2
Note:Pins designated should be in the closed position.
