MOTOROLA, INC.

ULTRA 603, ULTRA 604

Processor

Motorola PowerPC 603/PowerPC 603e/PowerPC 604

Processor Speed

Unidentified

NPU Options

N/A

Chipset

Intel/Motorola

Maximum Onboard Memory

Unidentified

Maximum Video Memory

Unidentified

Cache

Unidentified

BIOS

Unidentified

I/O Options

PCI/ISA riser card slot, PDS slot, PS/2 mouse port, floppy drive interface, IDE interface, SCSI interface, parallel port, serial ports (2), VGA port, VESA advanced connector, audio connectors (4), Ethernet via unshielded twisted pair, Ethernet via AUI transceiver via DB-15 port

Dimensions

330 x 228mm

NPU Options

None

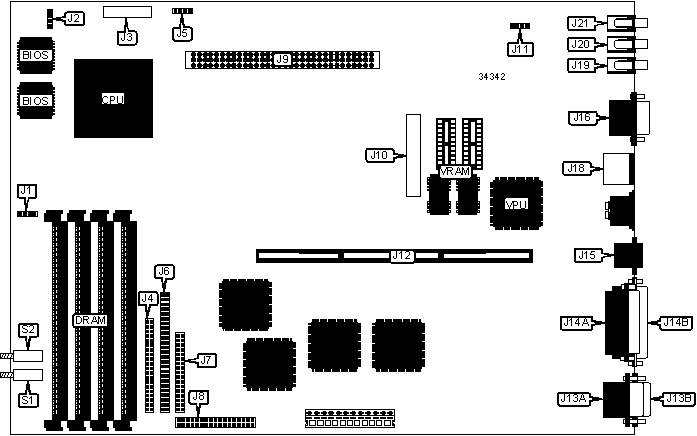

CONNECTIONS

Function

Label

Function

Label

Header for Reset and Abort switches

J1

Serial port 2

J13B

Speaker

J2

AUI transceiver via DB-15 port

J14A

RISCwatch connector

J3

Parallel port

J14B

IDE interface

J4

UTP connector

J15

Chassis fan power

J5

VGA port

J16

SCSI-2 Fast interface

J6

Power LED & keylock

J17

Not used

J7

PS/2 mouse interface

J18

Floppy drive interface

J8

Audio jack

J19

PDS slot

J9

Audio jack

J20

VESA advanced connector

J10

Audio jack

J21

Audio connector

J11

Abort switch

S1

PCI/ISA riser card slot

J12

Reset switch

S2

Serial port 1

J13A



Note:J3, S1 and S2 may not be present on all models.

DRAM CONFIGURATION

The DRAM configuration is unidentified.

VRAM CONFIGURATION

The VRAM configuration is unidentified.
