MAGITRONICS
A-P596CV-A
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/110/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
AMI/Award |
|
Dimensions |
270mm x 220mm |
|
I/O Options |
16-bit ISA slots (3), 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, USB connectors (2), PS/2 mouse, PS/2 keyboard, |
|
NPU Options |
None |
|

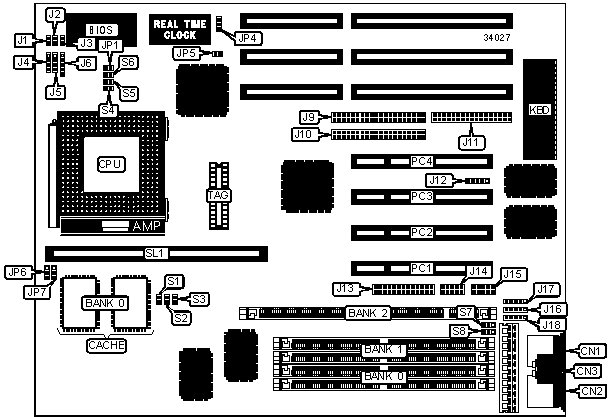

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse connector |
CN1 |
Floppy drive interface |
J11 |
|
PS/2 keyboard |
CN2 |
IR connector |
J12 |
|
Keyboard |
CN3 |
Parallel port |
J13 |
|
Reset switch |
J1 |
Serial port 2 |
J14 |
|
Green PC connector |
J2 |
Serial port 1 |
J15 |
|
Green PC LED |
J3 |
USB connector 1 (optional) |
J16 |
|
Speaker |
J4 |
USB connector 2 (optional) |
J17 |
|
IDE interface LED |
J5 |
PS/2 mouse interface |
J18 |
|
Power LED & keylock |
J6 |
Cache slot |
SL1 |
|
IDE interface 1 |
J9 |
32-bit PCI slots |
PC1 - PC4 |
|
IDE interface 2 |
J10 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Flash BIOS voltage select 12v |
JP4 |
Pins 1 & 2 closed | |
|
Flash BIOS voltage select 5v |
JP4 |
Pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP5 |
Open |
|
CMOS memory clear |
JP5 |
Closed | |
|
DIMM/DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
4MB |
(2) 512 x 32 |
None |
None |
|
8MB |
(2) 512 x 32 |
(2) 512 x 32 |
None |
|
8MB |
None |
None |
(1) 1M x 64 |
|
8MB |
(2) 1M x 32 |
None |
None |
|
16MB |
(2) 1M x 32 |
(2) 1M x 32 |
None |
|
16MB |
(2) 2M x 32 |
None |
None |
|
16MB |
None |
None |
(1) 2M x 64 |
|
24MB |
(2) 2M x 32 |
(2) 1M x 32 |
None |
|
24MB |
None |
(2) 1M x 32 |
(1) 2M x 64 |
|
32MB |
None |
(2) 4M x 32 |
None |
|
32MB |
None |
None |
(1) 4M x 64 |
|
32MB |
(2) 2M x 32 |
(2) 2M x 32 |
None |
|
32MB |
None |
(2) 2M x 32 |
(1) 2M x 64 |
|
40MB |
(2) 4M x 32 |
(2) 1M x 32 |
None |
|
40MB |
None |
(2) 1M x 32 |
(1) 4M x 64 |
|
40MB |
None |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(2) 2M x 32 |
(2) 4M x 32 |
None |
|
48MB |
None |
(2) 2M x 32 |
(1) 4M x 64 |
|
48MB |
None |
(2) 4M x 32 |
(1) 2M x 64 |
|
64MB |
(2) 8M x 32 |
None |
None |
|
64MB |
None |
None |
(1) 8M x 64 |
|
64MB |
None |
(2) 4M x 32 |
(1) 4M x 64 |
|
DIMM/DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
72MB |
(2) 8M x 32 |
(2) 1M x 32 |
None |
|
72MB |
None |
(2) 1M x 32 |
(1) 8M x 64 |
|
72MB |
None |
(2) 8M x 32 |
(1) 1M x 64 |
|
80MB |
(2) 8M x 32 |
(2) 2M x 32 |
None |
|
80MB |
None |
(2) 8M x 32 |
(1) 2M x 64 |
|
80MB |
None |
(2) 2M x 32 |
(1) 8M x 64 |
|
96MB |
(2) 8M x 32 |
(2) 4M x 32 |
None |
|
96MB |
None |
(2) 8M x 32 |
(1) 4M x 64 |
|
96MB |
None |
(2) 4M x 32 |
(1) 8M x 64 |
|
128MB |
(2) 4M x 32 |
(2) 4M x 32 |
None |
|
Note: Board accepts EDO memory. | |||
|
DRAM VOLTAGE CONFIGURATION | ||
|
Voltage |
S7 |
S8 |
|
3.3v |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
5v |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
SL1 |
TAG |
|
256KB |
(2) 32K x 32 |
Not installed |
(1) 8K/16K/32K x 8 |
|
512KB |
(2) 32K x 32 |
256KB module installed |
(1) 8K/16K/32K x 8 |
|
CPU SPEED SELECTION (CYRIX) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
S1 |
S2 |
S3 |
|
100MHz |
50MHz |
2x |
1 & 2 |
2 & 3 |
Closed |
Closed |
Open |
|
110MHz |
55MHz |
2x |
1 & 2 |
2 & 3 |
Open |
Closed |
Open |
|
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
Closed |
Open |
Open |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
Open |
Open |
Open |
|
150MHz |
60MHz |
3x |
2 & 3 |
1 & 2 |
Open |
Open |
Closed |
|
Note: Pins designated should be in the closed position. These settings are with the clock generator installed on U8. | |||||||
|
CPU SPEED SELECTION (AMD) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
S1 |
S2 |
S3 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
Closed |
Closed |
Open |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
Closed |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
Open |
Open |
|
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
Closed |
Open |
Open |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
Open |
Open |
Open |
|
Note: Pins designated should be in the closed position. These settings are with the clock generator installed on U8. | |||||||
|
CPU SPEED SELECTION (INTEL) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP7 |
S1 |
S2 |
S3 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
Closed |
Closed |
Open |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
Closed |
Open |
Open |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
Open |
Open |
Open |
|
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
Closed |
Open |
Open |
|
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
Open |
Open |
Open |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
2 & 3 |
Closed |
Open |
Open |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
Open |
Open |
Open |
|
180MHz |
60MHz |
3x |
2 & 3 |
1 & 2 |
Closed |
Open |
Open |
|
200MHz |
66MHz |
3x |
2 & 3 |
1 & 2 |
Open |
Open |
Open |
|
Note: Pins designated should be in the closed position. These settings are with the clock generator installed on U8. | |||||||
|
CPU VOLTAGE SELECTION | |||||
|
Voltage |
V core |
JP1 |
S4 |
S5 |
S6 |
|
3.4v (single) |
N/A |
Closed |
Closed |
Closed |
Closed |
|
3.4v (dual) |
2.8v |
Closed |
Open |
Open |
Open |
|
3.5v (single) |
N/A |
Open |
Closed |
Closed |
Closed |
|
Note: These settings are with 2 transistors installed in Q2. | |||||
