RHINO 9 (VER. 1.01)

OCEAN INFORMATION SYSTEMS, INC.

RHINO 9 (VER. 1.01)

Processor

CX M1/Pentium

Processor Speed

75/90/100/120/133/150/166MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

384MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector

NPU Options

None

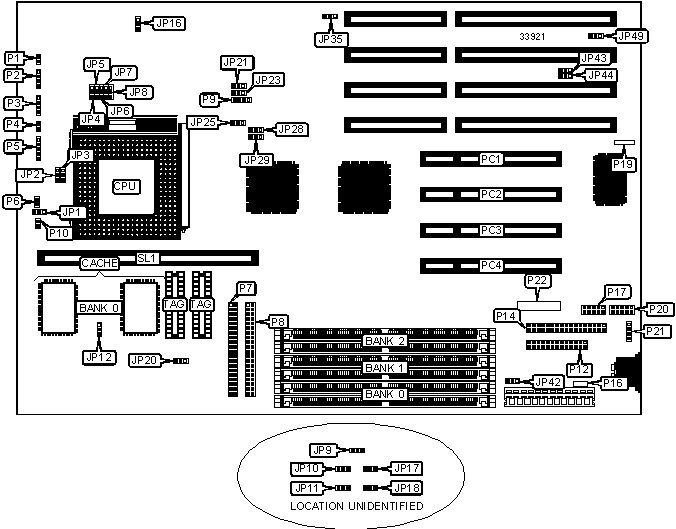

CONNECTIONS

Purpose

Location

Purpose

Location

Turbo LED

P1

Green PC connector

P10

Speaker

P2

Parallel port

P12

IDE interface LED

P3

Floppy drive interface

P14

Reset switch

P4

Serial port 1

P17

Power LED & keylock

P5

IR connector

P19

Chassis fan power

P6

Serial port 2

P20

IDE interface 2

P7

PS/2 mouse interface

P21

IDE interface 1

P8

32-bit PCI slots

PC1 - PC4

External battery

P9

Cache slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Fan voltage select +5v

JP1

Pins 1 & 2 closed

Fan voltage select +12v

JP1

Pins 2 & 3 closed

»

Factory configured - do not alter

JP20

Pins 2 & 3 closed

»

CMOS memory normal operation

JP21

Pins 1 & 2 closed

CMOS memory clear

JP21

Pins 2 & 3 closed

»

Battery type select internal

JP23

Pins 1 & 2 closed

Battery type select external

JP23

Pins 2 & 3 closed

»

Factory configured - do not alter

JP35

Pins 1 & 2 closed

»

Power good signal detect from power supply

JP42

Pins 1 & 2 closed

Power good signal detect from board

JP42

Pins 2 & 3 closed

»

Factory configured - do not alter

P16

Unidentified

»

Factory configured - do not alter

P22

Unidentified

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

4MB

(2) 512K x 36

None

None

8MB

(2) 1M x 36

None

None

8MB

(2) 512K x 36

(2) 512K x 36

None

12MB

(2) 512K x 36

(2) 1M x 36

None

12MB

(2) 1M x 36

(2) 512K x 36

None

12MB

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

16MB

(2) 2M x 36

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

16MB

(2) 512K x 36

(2) 512K x 36

(2) 1M x 36

20MB

(2) 512K x 36

(2) 2M x 36

None

24MB

(2) 1M x 36

(2) 2M x 36

None

24MB

(2) 512K x 36

(2) 512K x 36

(2) 2M x 36

32MB

(2) 4M x 36

None

None

36MB

(2) 512K x 36

(2) 4M x 36

None

40MB

(2) 1M x 36

(2) 4M x 36

None

40MB

(2) 512K x 36

(2) 512K x 36

(2) 4M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

64MB

(2) 8M x 36

None

None

68MB

(2) 512K x 36

(2) 8M x 36

None

72MB

(2) 1M x 36

(2) 8M x 36

None

72MB

(2) 512K x 36

(2) 512K x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

None

132MB

(2) 512K x 36

(2) 16M x 36

None

132MB

(2) 16M x 36

(2) 512K x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

None

136MB

(2) 512K x 36

(2) 512K x 36

(2) 16M x 36

144MB

(2) 16M x 36

(2) 2M x 36

None

160MB

(2) 16M x 36

(2) 4M x 36

None

192MB

(2) 16M x 36

(2) 8M x 36

None

256MB

(2) 16M x 36

(2) 16M x 36

None

260MB

(2) 16M x 36

(2) 16M x 36

(2) 512K x 36

264MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

272MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

320MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Size

Bank 0

SL1

TAG

256KB (A)

(2) 32K x 32

Not installed

(2) 8K/32K x 8

256KB (B)

None

256KB module installed

(2) 8K/32K x 8

512KB

(2) 32K x 32

256KB module installed

(2) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP4

JP5

JP6

JP7

JP12

None

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

256KB (A, B)

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2

512KB

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP8

JP25

JP28

JP29

100MHz

50MHz

2x

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP2

JP3

JP8

JP25

JP28

JP29

75MHz

50MHz

1.5x

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

2 & 3

90MHz

60MHz

1.5x

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

100MHz

66MHz

1.5x

1 & 2

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

166MHz

66MHz

2.5x

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP9

JP10

JP11

JP16

JP17

2.5v

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

3.3v

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

PS/2 MOUSE SELECTION

Setting

JP43

JP44

JP49

»
Enabled

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Processor	CX M1/Pentium
Processor Speed	75/90/100/120/133/150/166MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	384MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo LED	P1	Green PC connector	P10
Speaker	P2	Parallel port	P12
IDE interface LED	P3	Floppy drive interface	P14
Reset switch	P4	Serial port 1	P17
Power LED & keylock	P5	IR connector	P19
Chassis fan power	P6	Serial port 2	P20
IDE interface 2	P7	PS/2 mouse interface	P21
IDE interface 1	P8	32-bit PCI slots	PC1 - PC4
External battery	P9	Cache slot	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Fan voltage select +5v	JP1	Pins 1 & 2 closed
	Fan voltage select +12v	JP1	Pins 2 & 3 closed
»	Factory configured - do not alter	JP20	Pins 2 & 3 closed
»	CMOS memory normal operation	JP21	Pins 1 & 2 closed
	CMOS memory clear	JP21	Pins 2 & 3 closed
»	Battery type select internal	JP23	Pins 1 & 2 closed
	Battery type select external	JP23	Pins 2 & 3 closed
»	Factory configured - do not alter	JP35	Pins 1 & 2 closed
»	Power good signal detect from power supply	JP42	Pins 1 & 2 closed
	Power good signal detect from board	JP42	Pins 2 & 3 closed
»	Factory configured - do not alter	P16	Unidentified
»	Factory configured - do not alter	P22	Unidentified

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
4MB	(2) 512K x 36	None	None
8MB	(2) 1M x 36	None	None
8MB	(2) 512K x 36	(2) 512K x 36	None
12MB	(2) 512K x 36	(2) 1M x 36	None
12MB	(2) 1M x 36	(2) 512K x 36	None
12MB	(2) 512K x 36	(2) 512K x 36	(2) 512K x 36
16MB	(2) 2M x 36	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 512K x 36	(2) 512K x 36	(2) 1M x 36
20MB	(2) 512K x 36	(2) 2M x 36	None
24MB	(2) 1M x 36	(2) 2M x 36	None
24MB	(2) 512K x 36	(2) 512K x 36	(2) 2M x 36
32MB	(2) 4M x 36	None	None
36MB	(2) 512K x 36	(2) 4M x 36	None
40MB	(2) 1M x 36	(2) 4M x 36	None
40MB	(2) 512K x 36	(2) 512K x 36	(2) 4M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
64MB	(2) 8M x 36	None	None
68MB	(2) 512K x 36	(2) 8M x 36	None
72MB	(2) 1M x 36	(2) 8M x 36	None
72MB	(2) 512K x 36	(2) 512K x 36	(2) 8M x 36
128MB	(2) 16M x 36	None	None
132MB	(2) 512K x 36	(2) 16M x 36	None
132MB	(2) 16M x 36	(2) 512K x 36	None
136MB	(2) 16M x 36	(2) 1M x 36	None
136MB	(2) 512K x 36	(2) 512K x 36	(2) 16M x 36
144MB	(2) 16M x 36	(2) 2M x 36	None
160MB	(2) 16M x 36	(2) 4M x 36	None
192MB	(2) 16M x 36	(2) 8M x 36	None
256MB	(2) 16M x 36	(2) 16M x 36	None
260MB	(2) 16M x 36	(2) 16M x 36	(2) 512K x 36
264MB	(2) 16M x 36	(2) 16M x 36	(2) 1M x 36
272MB	(2) 16M x 36	(2) 16M x 36	(2) 2M x 36
288MB	(2) 16M x 36	(2) 16M x 36	(2) 4M x 36
320MB	(2) 16M x 36	(2) 16M x 36	(2) 8M x 36
384MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION
Size	Bank 0	SL1	TAG
256KB (A)	(2) 32K x 32	Not installed	(2) 8K/32K x 8
256KB (B)	None	256KB module installed	(2) 8K/32K x 8
512KB	(2) 32K x 32	256KB module installed	(2) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP4	JP5	JP6	JP7	JP12
None	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
256KB (A, B)	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2
512KB	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	JP2	JP3	JP8	JP25	JP28	JP29
100MHz	50MHz	2x	2 & 3	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3
120MHz	60MHz	2x	2 & 3	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP2	JP3	JP8	JP25	JP28	JP29
75MHz	50MHz	1.5x	1 & 2	1 & 2	1 & 2	1 & 2	2 & 3	2 & 3
90MHz	60MHz	1.5x	1 & 2	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3
100MHz	66MHz	1.5x	1 & 2	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
120MHz	60MHz	2x	2 & 3	1 & 2	1 & 2	2 & 3	1 & 2	2 & 3
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3
166MHz	66MHz	2.5x	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage	JP9	JP10	JP11	JP16	JP17
2.5v	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
3.3v	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

PS/2 MOUSE SELECTION
Setting		JP43	JP44	JP49
»	Enabled	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
