Processor	Pentium Pro
Processor Speed	150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	384MB (EDO supported)
Maximum Video Memory	None
Cache	512KB (on Pentium Pro CPU)
BIOS	Phoenix
Dimensions	330mm x 218mm
I/O Options	32-bit PCI slots (4), bus mouse port, CD-ROM audio input connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, VRM connector, USB connectors (2), microphone connector, audio line in connector, audio line out connector, external audio connector, wavetable connector, game/MIDI port
NPU Options	None

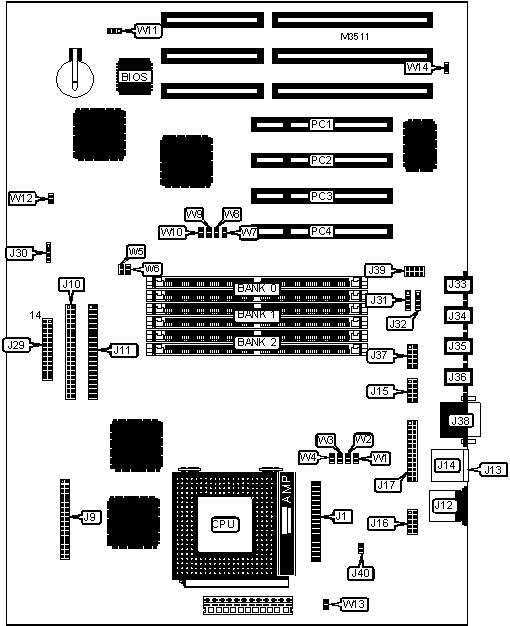

CONNECTIONS
Purpose	Location	Purpose	Location
VRM connector	J1	IDE interface LED	J29 pins 23 & 24
Floppy drive interface	J9	Turbo LED	J29 pins 25 & 26
IDE interface 1	J10	IR connector	J30
IDE interface 2	J11	CD-ROM audio connector	J31
PS/2 mouse port	J12	Modem connector	J32
USB connector	J13	Microphone in connector	J33
USB connector	J14	Audio line in connector	J34
Serial port 2	J15	Audio line out connector	J35
Serial port 1	J16	Speaker out connector	J36
Parallel port	J17	External audio connector	J37
System power on/off connector	J29 pins 1 & 2	Game/MIDI port	J38
IR connector	J29 pins 6 - 10	Wavetable connector	J39
Reset switch	J29 pins 12 & 13	Chassis fan power	J40
Speaker	J29 pins 14 - 17	32-bit PCI slots	PC1 - PC4
Power LED & keylock	J29 pins 18 - 22

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	W11	Pins 1 & 2 closed
	CMOS memory clear	W11	Pins 2 & 3 closed
»	Factory configured - do not alter (AT bus clock select)	W12	Closed
»	Factory configured - do not alter (system power supply enabled)	W13	Open
»	Internal sound enabled	W14	Open
	Internal sound disabled	W14	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(2) 1M x 36	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 2M x 36	None	None
24MB	(2) 2M x 36	(2) 1M x 36	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None	None
32MB	(2) 2M x 36	(2) 1M x 36	(2) 1M x 36
40MB	(2) 2M x 36	(2) 2M x 36	(2) 1M x 36
40MB	(2) 4M x 36	(2) 1M x 36	None
48MB	(2) 2M x 36	(2) 2M x 36	(2) 2M x 36
48MB	(2) 4M x 36	(2) 1M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36	None
56MB	(2) 4M x 36	(2) 2M x 36	(2) 1M x 36
64MB	(2) 4M x 36	(2) 2M x 36	(2) 2M x 36
64MB	(2) 4M x 36	(2) 4M x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
64MB	(2) 8M x 36	None	None
72MB	(2) 4M x 36	(2) 4M x 36	(2) 1M x 36
72MB	(2) 8M x 36	(2) 1M x 36	None
80MB	(2) 4M x 36	(2) 4M x 36	(2) 2M x 36
80MB	(2) 8M x 36	(2) 1M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36	None
96MB	(2) 8M x 36	(2) 2M x 36	(2) 2M x 36
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
96MB	(2) 8M x 36	(2) 4M x 36	None
128MB	(2) 8M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None
128MB	(2) 16M x 36	None	None
160MB	(2) 8M x 36	(2) 8M x 36	(2) 4M x 36
160MB	(2) 16M x 36	(2) 2M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36	None
192MB	(2) 8M x 36	(2) 8M x 36	(2) 8M x 36
192MB	(2) 16M x 36	(2) 4M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36	None
256MB	(2) 16M x 36	(2) 8M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36	None
384MB	(2) 16M x 36	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Note: 512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
Speed	W5	W6	W7	W8	W9	W10
150MHz	Closed	Open	Closed	Closed	Closed	Open
166MHz	Open	Closed	Closed	Closed	Closed	Open
180MHz	Closed	Open	Closed	Closed	Open	Closed
200MHz	Open	Closed	Closed	Closed	Open	Closed

CPU VOLTAGE SELECTION
Voltage	W1	W2	W3	W4
VID enabled	Open	Open	Open	Open
Non VID 2.9v	Closed	Open	Open	Closed
Non VID 3.1v	Closed	Open	Closed	Closed
Non VID 3.3v	Closed	Closed	Open	Closed
