NCR CORPORATION

MODEL 3306-XXXX PC286ISA 12/16MHZ

Processor

80286

Processor Speed

12/16MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

5MB

Maximum Video Memory

256KB

Cache

None

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port, riser slot, volume control

NPU Options

80287

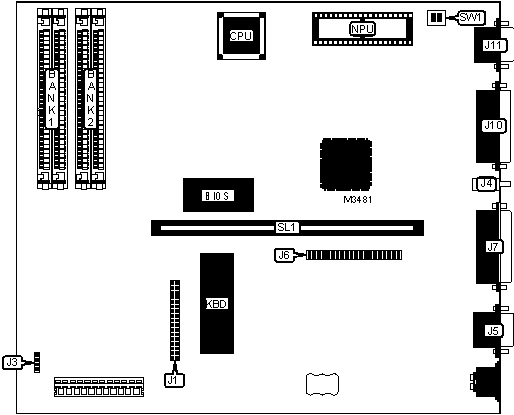

CONNECTIONS

Purpose

Location

Purpose

Location

Floppy drive interface

J1

Serial port 1

J7

Power LED & keylock

J3

Parallel port

J10

Volume control

J4

VGA port

J11

Serial port 2

J5

Riser slot

SL1

IDE interface

J6



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

On board video enabled

SW1/1

Off



On board video disabled

SW1/1

On

»

Monitor type select color

SW1/2

On



Monitor type select monochrome

SW1/2

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

1MB

1MB

None

None

3MB

1MB

(2) 1M x 9

None

5MB

1MB

(2) 1M x 9

(2) 1M x 9

Note: Bank 0 is factory installed and is not configurable. The location of Bank 0 is unidentified.

VIDEO MEMORY CONFIGURATION

Note: 256KB video memory is factory installed and is not configurable.
