M TECHNOLOGIES, INC.

P5-SP

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

SIS

Max. Onboard DRAM

128MB

Cache

256/512/1024KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), green PC connector, Legacy card connector

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J1

Green PC connector

J6

Speaker

J2

Chassis fan power

J7

Reset switch

J3

32-bit PCI slots

PC1 - PC4

Turbo switch

J4

Legacy card connector

W1

Turbo LED

J5

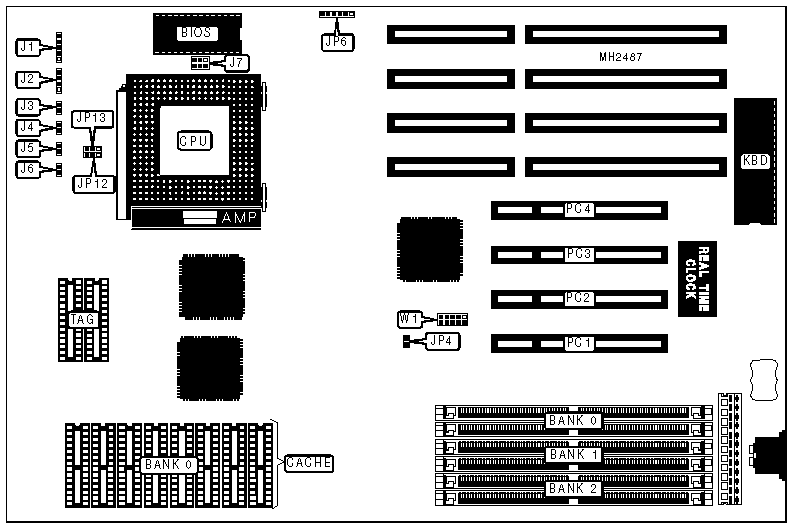

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

BIOS type select Flash

JP6

pins 1 & 2, 5 & 6 closed



BIOS type select EPROM

JP6

pins 2 & 3, 4 & 5 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

2MB

(2) 256K x 36

NONE

NONE

4MB

(2) 256K x 36

(2) 256K x 36

NONE

4MB

(2) 512K x 36

NONE

NONE

8MB

(2) 256K x 36

(2) 256K x 36

(2) 512K x 36

8MB

(2) 512K x 36

NONE

(2) 512K x 36

8MB

(2) 1M x 36

NONE

NONE

12MB

(2) 256K x 36

(2) 256K x 36

(2) 1M x 36

12MB

(2) 512K x 36

NONE

(2) 1M x 36

16MB

(2) 1M x 36

(2) 1M x 36

NONE

16MB

(2) 2M x 36

NONE

NONE

20MB

(2) 256K x 36

(2) 256K x 36

(2) 2M x 36

20MB

(2) 512K x 36

NONE

(2) 2M x 36

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 2M x 36

NONE

32MB

(2) 1M x 36

(2) 1M x 36

(2) 2M x 36

32MB

(2) 2M x 36

NONE

(2) 2M x 36

32MB

(2) 4M x 36

NONE

NONE

36MB

(2) 256K x 36

(2) 256K x 36

(2) 4M x 36

36MB

(2) 512K x 36

NONE

(2) 4M x 36

40MB

(2) 1M x 36

(2) 4M x 36

NONE

48MB

(2) 1M x 36

(2) 1M x 36

(2) 4M x 36

48MB

(2) 2M x 36

NONE

(2) 4M x 36

64MB

(2) 4M x 36

(2) 4M x 36

NONE

64MB

(2) 8M x 36

NONE

NONE

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

72MB

(2) 1M x 36

(2) 8M x 36

NONE

80MB

(2) 1M x 36

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

NONE

(2) 8M x 36

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

96MB

(2) 4M x 36

(2) 8M x 36

NONE

128MB

(2) 4M x 36

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

NONE

(2) 8M x 36

128MB

(2) 16M x 36

NONE

NONE

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(8) 8K x 8

(2) 8K x 8

512KB

(8) 64K x 8

(2) 16K x 8

1MB

(8) 128K x 8

(2) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP12

JP13

256KB

pins 1 & 2 closed

pins 1 & 2 closed

512KB

pins 2 & 3 closed

pins 1 & 2 closed

1MB

pins 2 & 3 closed

pins 2 & 3 closed

CPU SPEED CONFIGURATION

Speed

JP4

60MHz

Open

66MHz

Closed
