MINTA TECHNOLOGIES, CO.

80486DX/SX - SC Rev. E

Processor

80486SX/80486DX/80486DX2

Processor Speed

20/25/33/50(internal)/50/66(internal)MHz

Chip Set

Symphony

Max. Onboard DRAM

32MB

Cache

64/128/256/1024KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

4167

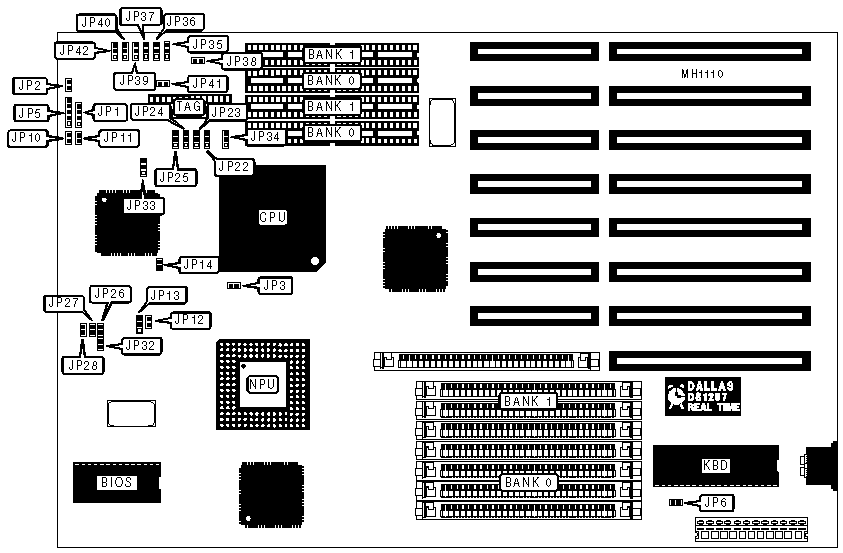

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

JP1

Turbo switch

JP10

Reset switch

JP2

Turbo LED

JP11

Power LED & keylock

JP5



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select monochrome

JP6

Open



Monitor type select color

JP6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1M x 9

5MB

(4) 1M x 9

(4) 256K x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

17MB

(4) 256K x 9

(4) 4M x 9

17MB

(4) 4M x 9

(4) 256K x 9

20MB

(4) 1M x 9

(4) 4M x 9

20MB

(4) 4M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

64KB

(4) 8K x 8

(4) 8K x 8

(1) 8K x 8

128KB

(4) 32K x 8

NONE

(1) 32K x 8

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

1024KB

(4) 128K x 8

(4) 128K x 8

(1) 128K x 8

CACHE JUMPER CONFIGURATION

Size

JP22

JP23

JP24

JP25

JP26

JP28

JP34

64KB

1 & 2

1 & 2

1 & 2

1 & 2

Open

Closed

1 & 2

128KB

2 & 3

1 & 2

1 & 2

1 & 2

Closed

Open

Open

256KB

2 & 3

2 & 3

1 & 2

1 & 2

Open

Closed

2 & 3

1024KB

2 & 3

2 & 3

2 & 3

2 & 3

Open

Closed

2 & 3

Note:Pins designated should be in the closed position.

CACHE JUMPER CONFIGURATION (CON’T)

Size

JP35

JP36

JP37

JP38

JP39

JP40

JP41

JP42

64KB

2 & 3

2 & 3

2 & 3

Open

2 & 3

2 & 3

Open

2 & 3

128KB

1 & 2

1 & 2

1 & 2

Closed

Open

1 & 2

Closed

2 & 3

256KB

2 & 3

2 & 3

2 & 3

Open

2 & 3

2 & 3

Open

2 & 3

1024KB

2 & 3

2 & 3

2 & 3

Open

2 & 3

2 & 3

Open

2 & 3

Note:Pins designated should be in the closed position.

CPU TYPE CONFIGURATION

Type

JP12

JP13

JP14

80486SX

Open

pins 2 & 3 closed

Open

80486DX

Closed

pins 1 & 2 closed

Closed

CPU SPEED CONFIGURATION

Speed

JP3

JP27

iOSC/2

pins 2 & 3 closed

Open

iOSC/1

pins 1 & 2 closed

Closed
