Processor	80386DX
Processor Speed	33/40MHz
Chip Set	FOREX
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387/3167

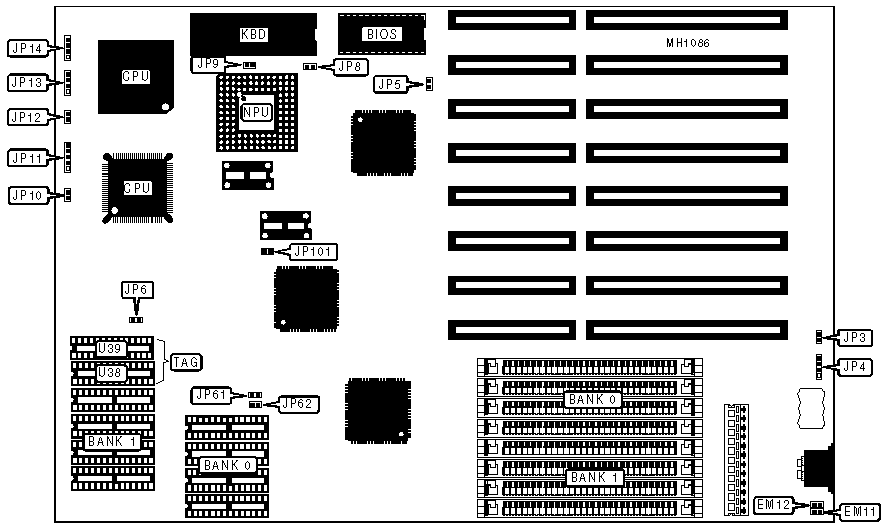

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP4	Turbo switch	JP12
Reset switch	JP10	Speaker	JP13
Power LED & keylock	JP11	Turbo LED	JP14

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	EM11	Open
»	Factory configured - do not alter	EM12	Open
»	Battery type select external 6.0VDC	JP3	Open
	Battery type select external 3.6VDC	JP3	Closed
»	CMOS memory normal operation	JP5	Open
	CMOS memory clear	JP5	Closed
»	Monitor type select color	JP8	Open
	Monitor type select monochrome	JP8	Closed
»	Factory configured - do not alter	JP9	Open
»	Factory configured - do not alter	JP101	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG (U38)	TAG (U39)
64KB	(4) 8K x 8	(4) 8K x 8	(1) 8K x 8	NONE
128KB	(4) 32K x 8	NONE	(1) 8K x 8	NONE
256KB	(4) 32K x 8	(4) 32K x 8	(1) 8K x 8	(1) 8K x 8

CACHE JUMPER CONFIGURATION
Size	JP6	JP61	JP62
64KB	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed
128KB	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
256KB	pins 1 & 2 closed	pins 2 & 3 closed	pins 2 & 3 closed
