NORTHGATE COMPUTER SYSTEMS, INC.
ELEGANCE SP
|
Processor |
80386DX/80486DX |
|
Processor Speed |
25/33MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
64MB |
|
Cache |
64/256KB |
|
BIOS |
AMI |
|
Dimensions |
350mm x 304mm |
|
I/O Options |
Proprietary CPU module slot, parallel port, serial ports (2), floppy drive interface, IDE interface |
|
NPU Options |
80387/3167/4167 |
|

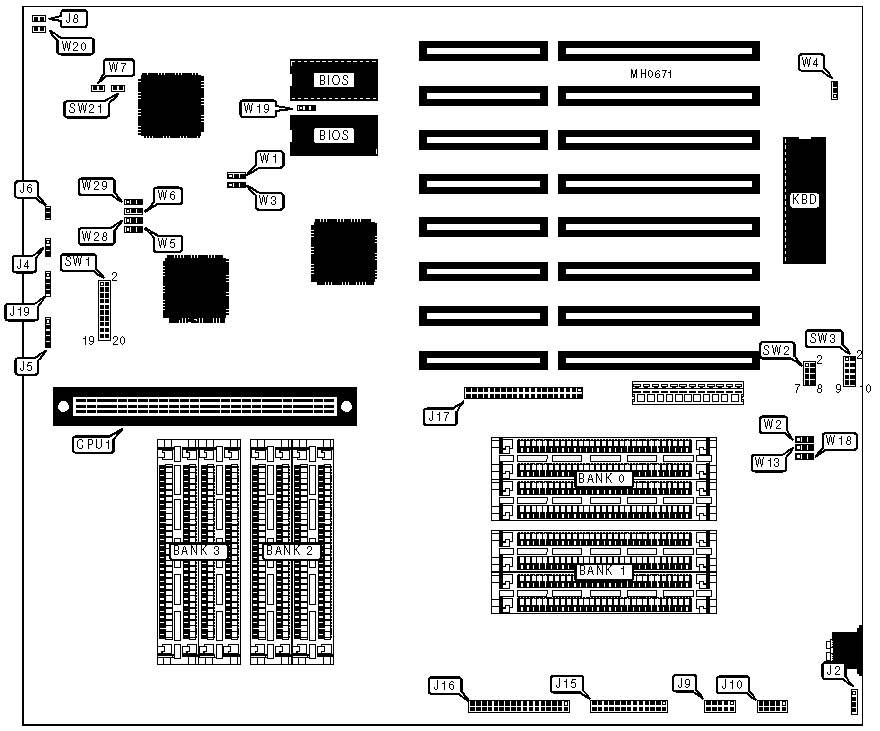

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Proprietary CPU module |
CPU1 |
Serial port 1 |
J9 |
|
External battery |
J2 |
Serial port 2 |
J10 |
|
Turbo LED |
J4 |
Parallel port |
J15 |
|
Power LED & keylock |
J5 |
Floppy drive interface |
J16 |
|
Reset switch |
J6 |
IDE interface |
J17 |
|
IDE interface LED |
J8 |
Speaker |
J19 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Bus speed select |
W1 |
N/A |
| » |
Floppy drive write precomp select alternate |
W2 |
pins 2 & 3 closed |
|
Floppy drive write precomp select normal |
W2 |
pins 1 & 2 closed | |
| » |
CPU speed select |
W3 |
N/A |
| » |
Monitor type select monochrome |
W4 |
pins 1 & 2 closed |
|
Monitor type select color |
W4 |
pins 2 & 3 closed | |
| » |
CMOS memory normal operation |
W7 |
Open |
|
CMOS memory clear |
W7 |
Closed | |
| » |
Parallel port mode select bi-directional |
W13 |
pins 2 & 3 closed |
|
Parallel port mode select input only |
W13 |
pins 1 & 2 closed | |
| » |
Floppy drive mode select single speed |
W18 |
pins 1 & 2 closed |
|
Floppy drive mode select dual speed |
W18 |
pins 2 & 3 closed | |
| » |
BIOS type select |
W19 |
N/A |
| » |
Factory configured - do not alter |
SW1 pins 1 & 2 |
N/A |
| » |
VGA BIOS shadowing enabled |
SW1 pins 7 & 8 |
Closed |
|
VGA BIOS shadowing disabled |
SW1 pins 7 & 8 |
Open | |
| » |
Factory configured - do not alter |
SW1 pins 9 & 10 |
Open |
| » |
BIOS shadowing enabled |
SW1 pins 11 & 12 |
Closed |
|
BIOS shadowing disabled |
SW1 pins 11 & 12 |
Open | |
| » |
Floppy drive interface enabled |
SW3 pins 1 & 2 |
Open |
|
Floppy drive interface disabled |
SW3 pins 1 & 2 |
Closed | |
|
Note:Jumpers W1, W3 and W19 are factory configured and should not be altered. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
40MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
DRAM JUMPER CONFIGURATION | |||||
|
Size |
SW1 |
W5 |
W6 |
W28 |
W29 |
|
1MB |
13 & 14, 15 & 16, 17 & 18, 19 & 20 |
2 & 3 |
2 & 3 |
Open |
Open |
|
2MB |
13 & 14, 17 & 18, 19 & 20 |
2 & 3 |
2 & 3 |
Open |
Open |
|
4MB |
13 & 14, 15 & 16, 17 & 18 |
1 & 2 |
2 & 3 |
Open |
Open |
|
6MB |
15 & 16, 17 & 18, 19 & 20 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
|
8MB |
13 & 14, 17 & 18 |
1 & 2 |
2 & 3 |
Open |
Open |
|
10MB |
17 & 18, 19 & 20 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
|
12MB |
15 & 16, 17 & 18 |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
16MB |
17 & 18 |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
16MB |
13 & 14, 15 & 16 |
1 & 2 |
1 & 2 |
Open |
Open |
|
24MB |
15 & 16, 19 & 20 |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
|
32MB |
13 & 14 |
1 & 2 |
1 & 2 |
Open |
Open |
|
40MB |
19 & 20 |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
|
48MB |
15 & 16 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
64MB |
Open |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note:Pins designated should be in the closed position. | |||||
|
IDE CONFIGURATION | ||
|
Setting |
SW21 |
W20 |
|
Enabled |
Open |
Closed |
|
Disabled |
Closed |
Open |
|
PARALLEL PORT CONFIGURATION | |
|
IRQ |
SW3 |
|
LPT1/3BCh |
pins 9 & 10 closed |
|
LPT1/378h |
Open |
|
LPT2/278h |
pins 7 & 8 closed |
|
Disabled |
pins 7 & 8, 9 & 10 closed |
|
PARALLEL PORT IRQ CONFIGURATION | |
|
IRQ |
SW2 |
|
IRQ7 |
pins 7 & 8 closed |
|
IRQ5 |
pins 5 & 6 closed |
|
SERIAL PORT 1 CONFIGURATION | ||
|
Setting |
SW2 |
SW3 |
|
Enabled |
pins 1 & 2 closed |
Open |
|
Disabled |
Open |
pins 5 & 6 closed |
|
SERIAL PORT 2 CONFIGURATION | ||
|
Setting |
SW2 |
SW3 |
|
Enabled |
pins 3 & 4 closed |
Open |
|
Disabled |
Open |
pins 3 & 4 closed |
|
BIOS CONFIGURATION | |
|
Size |
SW1 |
|
F000-FFFF(VGA BIOS disabled) |
3 & 4, 5 & 6 |
|
F000-FFFF, E000-EFFF (VGA BIOS disabled, BIOS shadowing enabled) |
3 & 4 |
|
F000-FFFF VGA BIOS at C000-C7FF |
5 & 6 |
|
F000-FFFF VGA BIOS at C000-C7FF, IDE interface at C800-CFFF |
5 & 6 |
|
Note : Pins designated should be in the closed position. | |
|

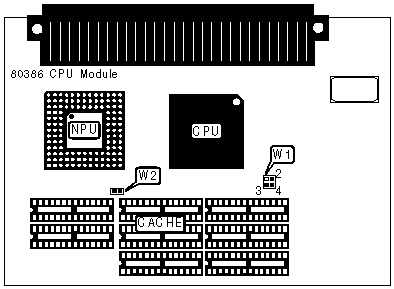

USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
W2 |
N/A |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
64KB |
(8) 8K x 8 |
|
256KB |
(8) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
W1 |
|
64KB |
Open |
|
256KB |
pins 1 & 2, 3 & 4 closed |
|

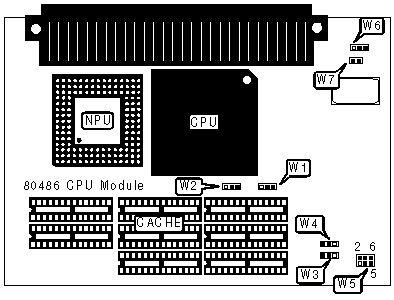

USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
W6 |
N/A |
| » |
Factory configured - do not alter |
W7 |
N/A |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
64KB |
(8) 8K x 8 |
|
256KB |
(8) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||
|
Size |
W1 |
W2 |
W5 |
|
64KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
256KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 3 & 4, 5 & 6 closed |
|
BURST MODE CONFIGURATION | |||
|
Setting |
W3 |
W4 |
W5 |
|
Enabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
