MICROWISE, INC.

486A-33

Processor

80486SX/80487SX/80486DX

Processor Speed

20/25/33/50MHz

Chip Set

SIS

Max. Onboard DRAM

32MB

Cache

32/64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card slot

NPU Options

4167

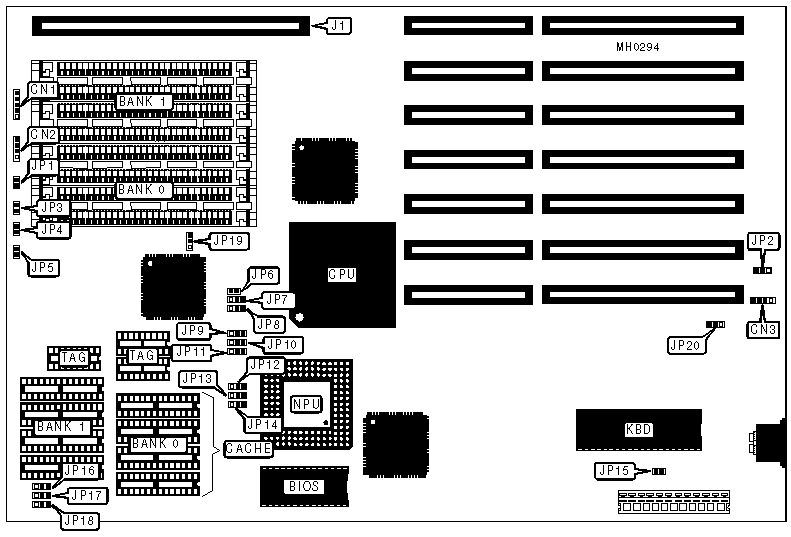

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

CN1

Reset switch

JP1

Speaker

CN2

Turbo switch

JP3

External battery

CN3

Turbo LED

JP5

32-bit external memory card

J1



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation

JP2

pins 1 & 2 closed



CMOS memory clear

JP2

pins 2 & 3 closed

»

Factory configured - do not alter

JP4

N/A

»

Monitor type select color

JP15

Closed



Monitor type select monochrome

JP15

Open

»

Factory configured - do not alter

JP19

N/A

»

Factory configured - do not alter

JP20

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

4MB

(4) 1M x 9

NONE

NONE

NONE

6MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

10MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

NONE

NONE

18MB

(4) 256K x 9

(4) 256K x 9

(4) 4M x 9

NONE

20MB

(4) 1M x 9

(4) 4M x 9

NONE

NONE

24MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

NONE

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE

36MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

NONE

40MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

48MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

NONE

64MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

Note:Banks 2 & 3 are used when a 32-bit external memory card is installed at J1.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

32KB

(4) 8K x 8

NONE

(3) 16K x 4

64KB

(4) 8K x 8

(4) 8K x 8

(3) 16K x 4

128KB

(4) 32K x 8

NONE

(3) 16K x 4

256KB

(4) 32K x 8

(4) 32K x 8

(3) 16K x 4

CACHE JUMPER CONFIGURATION

Size

JP9

JP10

JP11

JP12

JP13

JP14

JP16

JP17

JP18

32KB

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

64KB

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

128KB

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

256KB

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

Note:Pins designated should be in the closed position.

CPU TYPE CONFIGURATION

Type

JP6

JP7

JP8

80486SX

Open

Open

pins 2 & 3 closed

80487SX

Closed

pins 2 & 3 closed

pins 1 & 2 closed

80486DX

Closed

pins 1 & 2 closed

pins 1 & 2 closed
