Processor	80286
Processor Speed	12MHz
Chip Set	None
Max. Onboard DRAM	4MB
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

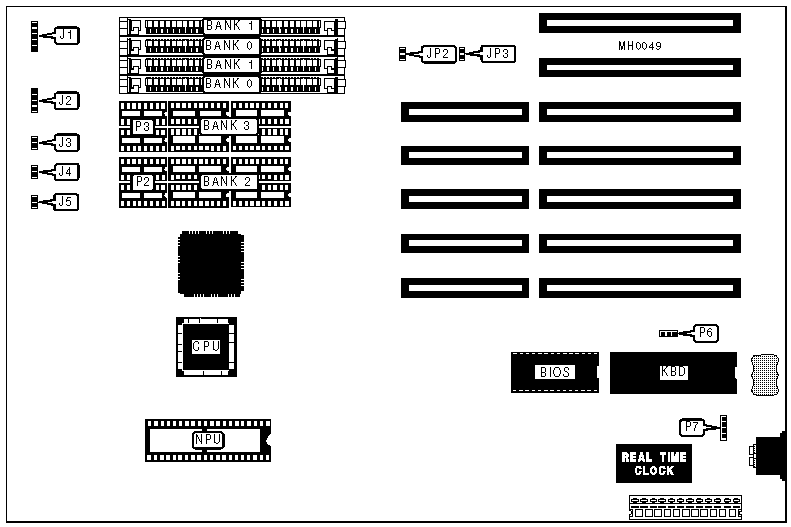

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Turbo switch	J4
Speaker	J2	Turbo LED	J5
Reset switch	J3	External battery	P7

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	P6	pins 2 & 3 closed
	Monitor type select monochrome	P6	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	P2	Bank 3	P3
512KB	NONE	NONE	(4) 44256	(2) 41256	NONE	NONE
512KB	(2) 256K x 9	NONE	NONE	NONE	NONE	NONE
1MB	NONE	NONE	(4) 44256	(2) 41256	(4) 44256	(2) 41256
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE	NONE	NONE
2MB	(2) 1M x 9	NONE	NONE	NONE	NONE	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE	NONE	NONE
