Device Type	Mainboard,
Processor	Pentium II/Celeron
Processor Speed	233/266/300/333/350/400/450MHz
Chip Set	VIA Apollo
Maximum Onboard Memory	512MB (EDO & SDRAM supported)
Audio Chip Set	ESS
Cache	0/128/256/512KB (located on the CPU)
BIOS	Award
Dimensions	230mm x 220mm
I/O Options	32-bit PCI slots (3), floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, AGP slot, line in, line out, microphone in, audio in – CD-ROMs (2), SB-link connector, wake on LAN connector

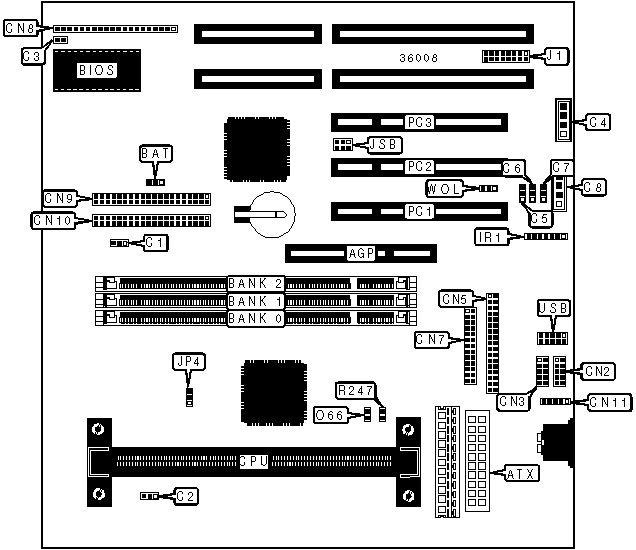

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Speaker	CN8/pins 7 – 10
ATX power connector	ATX	Reset switch	CN8/pins 12 & 13
Chassis fan power	C1	IDE interface LED	CN8/pins 15 & 16
Chassis fan power	C2	Turbo LED	CN8/pins 18 & 19
Soft off power supply	C3	Green PC connector	CN8/pins 21 & 22
Audio in – CD-ROM	C4	IDE interface 1	CN9
Microphone in	C5	IDE interface 2	CN10
Line out	C6	PS/2 mouse interface	CN11
Line in	C7	IR connector	IR1
Audio in – CD-ROM	C8	Game interface	J1
Serial port 1	CN2	SB-link connector	JSB
Serial port 2	CN3	32-bit PCI slots	PC1 – PC3
Floppy drive interface	CN5	CPU temperature sensor	R247
Parallel port	CN7	USB connector	USB
Power LED & keylock	CN8/pins 1 – 5	Wake on LAN connector	WOL

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	BAT	Pins 1 & 2 closed
	CMOS memory clear	BAT	Pins 2 & 3 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
16MB	(1) 2M x 64	None	None
32MB	(1) 4M x 64	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None
40MB	(1) 2M x 64	(1) 2M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
56MB	(1) 4M x 64	(1) 2M x 64	(1) 1M x 64
64MB	(1) 8M x 64	None	None
64MB	(1) 4M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None
80MB	(1) 8M x 64	(1) 2M x 64	None
80MB	(1) 4M x 64	(1) 4M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 2M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
112MB	(1) 8M x 64	(1) 4M x 64	(1) 2M x 64
128MB	(1) 16M x 64	None	None
128MB	(1) 8M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None
144MB	(1) 16M x 64	(1) 2M x 64	None

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2
144MB	(1) 8M x 64	(1) 8M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None
160MB	(1) 8M x 64	(1) 8M x 64	(1) 4M x 64
176MB	(1) 16M x 64	(1) 4M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
208MB	(1) 16M x 64	(1) 8M x 64	(1) 2M x 64
224MB	(1) 16M x 64	(1) 8M x 64	(1) 4M x 64
256MB	(1) 32M x 64	None	None
256MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64
288MB	(1) 32M x 64	(1) 4M x 64	None
320MB	(1) 32M x 64	(1) 4M x 64	(1) 4M x 64
320MB	(1) 32M x 64	(1) 8M x 64	None
384MB	(1) 32M x 64	(1) 8M x 64	(1) 8M x 64
384MB	(1) 32M x 64	(1) 16M x 64	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
512MB	(1) 32M x 64	(1) 16M x 64	(1) 16M x 64
512MB	(1) 32M x 64	(1) 32M x 64	None
Note: Board accepts EDO & SDRAM memory.

DIMM FREQUENCY CONFIGURATION
CPU	SDRAM	JP4
66MHz	66MHz	Pins 1 & 2 closed
100MHz	66MHz	Pins 2 & 3 closed
100MHz	100MHz	Pins 1 & 2 closed

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	O66
200MHz	66MHz	3x	Closed
233MHz	66MHz	3.5x	Closed
266MHz	66MHz	4x	Closed
300MHz	66MHz	4.5x	Closed
333MHz	66MHz	5x	Closed
350MHz	100MHz	3.5x	Open
400MHz	100MHz	4x	Open
450MHz	100MHz	4.5x	Open
