LANNER ELECTRONICS, INC.

AP-60IFV

Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

150/166/180/200MHz

Chip Set

Intel

Video Chip Set

Chips & Technologies

Maximum Onboard Memory

512MB (EDO supported)

Maximum Video Memory

2MB

Cache

256KB (located on Pentium Pro CPU)

BIOS

AMI/Award

Dimensions

Unidentified

I/O Options

Floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), flat panel connectors (2)

NPU Options

None

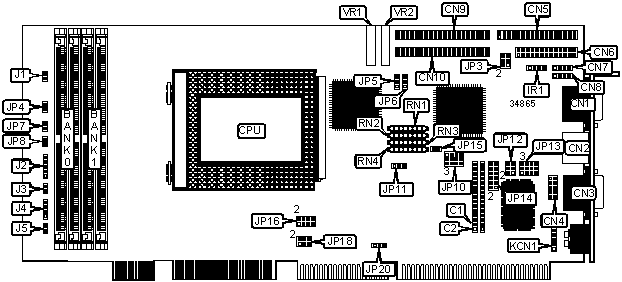

CONNECTIONS

Purpose

Location

Purpose

Location

Flat panel connector

C1

IDE interface 1

CN9

Flat panel connector

C2

IDE interface 2

CN10

VGA port

CN1

IDE interface LED

J1

PS/2 mouse port

CN2

Power LED & keylock

J2

Serial port 1

CN3

Turbo LED

J3

Serial port 2

CN4

Speaker

J4

Floppy drive interface

CN5

Reset switch

J5

Parallel port

CN6

Green PC connector

JP4

USB connector 1

CN7

IR connector

IR1

USB connector 2

CN8

Auxiliary keyboard connector

KCN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

VEE voltage select +12v - +35v

JP5

Pins 2 & 3 closed



VEE voltage select -12v - -34v

JP5

Pins 1 & 2 closed

Contrast voltage enabled

JP6

Pins 1 & 2 closed



VEE voltage enabled

JP6

Pins 2 & 3 closed

Factory configured - do not alter

JP12

Open

Factory configured - do not alter

JP13

Pins 2 & 3, 5 & 6, 8 & 9 closed

Factory configured - do not alter

JP14

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12 closed

PS/2 mouse IRQ12 enabled

JP15

Closed



PS/2 mouse IRQ12 disabled

JP15

Open

Flash BIOS voltage select 5v

JP20

Pins 2 & 3 closed



Flash BIOS voltage select 12v

JP20

Pins 1 & 2 closed

Factory configured - do not alter

RN1

Unidentified

Factory configured - do not alter

RN2

Unidentified

Factory configured - do not alter

RN3

Unidentified

Factory configured - do not alter

RN4

Unidentified

Factory configured - do not alter

VR1

Unidentified

Factory configured - do not alter

VR1

Unidentified

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 32M x 36

None

256MB

(2) 16M x 36

(2) 16M x 36

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: Board accepts 1MB/2MB video memory. The location is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP7

JP8

JP16

JP18

150MHz

60MHz

2.5x

Open

Closed

1 & 2, 3 & 4, 5 & 6

1 & 2

166MHz

66MHz

2.5x

Closed

Open

1 & 2, 3 & 4, 5 & 6

Open

180MHz

60MHz

3x

Open

Closed

1 & 2, 3 & 4, 7 & 8

1 & 2

200MHz

66MHz

3x

Closed

Open

1 & 2, 3 & 4, 7 & 8

Open

Note: Pins designated should be in the closed position.

FLAT PANEL SELECTION

Setting

JP3



1024 x 768 DSTN

Pins 1 & 2, 3 & 4, 5 & 6 closed



1280 x 1024 TFT

Pins 3 & 4, 5 & 6 closed



640 x 480 DSTN

Pins 1 & 2, 5 & 6 closed



800 x 600 DSTN

Pins 5 & 6 closed



640 x 480 Sharp TFT

Pins 1 & 2, 3 & 4 closed

640 x 480 18 bit TFT

Pins 3 & 4 closed



1024 x 768 TFT

Pins 1 & 2 closed



800 x 600 TFT

Open

WATCHDOG TIMER ACTIVE SELECTION

Time out

JP10



.5 sec

Pins 2 & 3 closed



1 sec

Pins 5 & 6 closed



2 sec

Pins 8 & 9 closed

4 sec

Pins 11 & 12 closed



8 sec

Pins 10 & 11 closed



16 sec

Pins 7 & 8 closed



32 sec

Pins 4 & 5 closed



64 sec

Pins 1 & 2 closed

WATCHDOG TIMER ACTIVE SELECTION

Time out

JP11

Reset system

Pins 1 & 2 closed



NMI system

Pins 2 & 3 closed



Disabled

Open
