IBM CORPORATION
486SLC2 VESA
Processor |
486SLC2 |
Processor Speed |
50(internal)/66(internal)MHz |
Chip Set |
Unidentified |
Video Chip Set |
None |
Maximum Onboard Memory |
16MB |
Maximum Video Memory |
None |
Cache |
64/128/256KB |
BIOS |
Award |
Dimensions |
254mm x 218mm |
I/O Options |
32-bit VESA local bus slots (3) |
NPU Options |
80387SX |

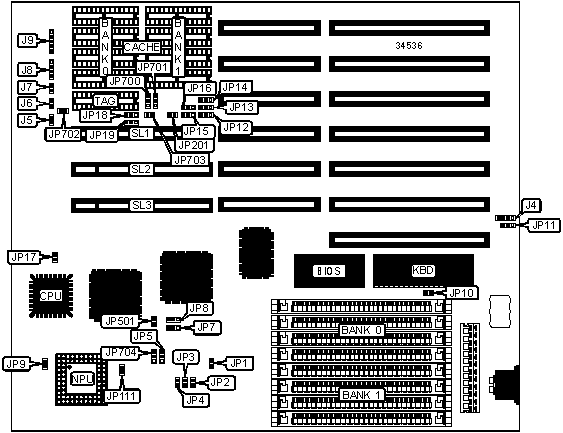

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
External battery |
J4 |
Speaker |
J8 |
Turbo LED |
J5 |
Power LED & keylock |
J9 |
Turbo switch |
J6 |
Chassis fan power |
JP9 |
Reset switch |
J7 |
32-bit VESA local bus slots |
SL1 – SL3 |
USER CONFIGURABLE SETTINGS | |||
Function |
Label |
Position | |
» |
Monitor type select color/EGA/VGA |
JP10 |
Closed |
Monitor type select monochrome |
JP10 |
Open | |
Battery type select internal |
JP11 |
Pins 2 & 3 closed | |
Battery type select external |
JP11 |
Pins 1 & 2 closed | |
» |
CPU memory read/write delay enabled |
JP700 |
Pins 1 & 2 closed |
CPU memory read/write delay disabled |
JP700 |
Pins 2 & 3 closed |
SIMM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
1MB |
(4) 256K x 9 |
None |
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
4MB |
(4) 1M x 9 |
None |
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
16MB |
(4) 4M x 9 |
None |
CACHE CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
TAG |
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
128KB |
(4) 32K x 8 |
None |
(1) 32K x 8 |
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
CACHE JUMPER CONFIGURATION | |||||
Size |
JP12 |
JP13 |
JP14 |
JP15 |
JP16 |
64KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
128KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
256KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
Note: Pins designated should be in the closed position. |
CACHE JUMPER CONFIGURATION (CON’T) | ||||
Size |
JP11 |
JP17 |
JP702 |
JP703 |
64KB |
Open |
Open |
Open |
Open |
128KB |
Closed |
Open |
Closed |
Closed |
256KB |
Open |
Closed |
Closed |
Closed |
CPU SPEED SELECTION | ||||||
Speed |
JP1 |
JP2 |
JP3 |
JP4 |
JP5 |
JP704 |
50iMHz |
Closed |
Open |
Open |
Closed |
2 & 3 |
1 & 2 |
66iMHz |
Closed |
Closed |
Open |
Open |
2 & 3 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU ADS DELAY SELECTION | |||
Setting |
JP201 |
JP701 | |
» |
Enabled |
Closed |
Pins 1 & 2 closed |
Disabled |
Open |
Pins 2 & 3 closed |
VL BUS WAIT STATE SELECTION | ||
Setting |
JP18 | |
» |
0 |
Pins 1 & 2 closed |
1 |
Pins 2 & 3 closed |
VL BUS SPEED SELECTION | |
Speed |
JP19 |
<= 33MHz |
Pins 1 & 2 closed |
>33 MHz |
Pins 2 & 3 closed |
LOCAL BUS CLOCK DELAY SELECTION | |||
Setting |
JP7 |
JP8 | |
» |
No delay |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
One gate delay |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
