J-BOND COMPUTER SYSTEMS CORPORATION

PCI500C-H4

Processor

CX 6X86/IBM 6X86/AM K5/AM K6/Pentium

Processor Speed

90/100/120/133/150/166/180/200/233MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)

NPU Options

None

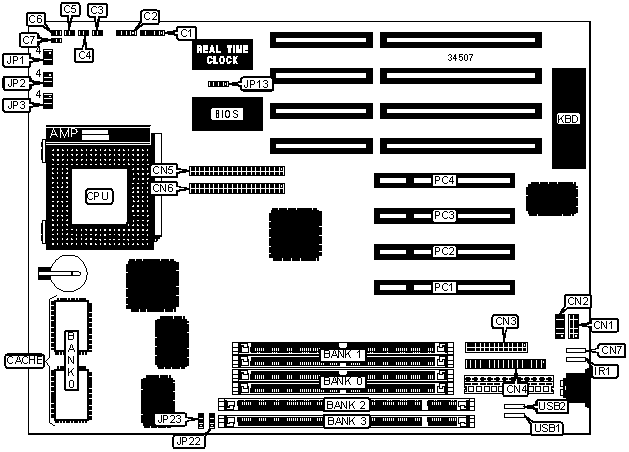

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

C1

Parallel port

CN3

Speaker

C2

Floppy drive interface

CN4

Turbo LED

C3

IDE interface 1

CN5

IDE interface LED

C4

IDE interface 2

CN6

Turbo switch

C5

PS/2 mouse interface

CN7

Reset switch

C6

IR connector

IR1

Green PC connector

C7

32-bit PCI slots

PC1 – PC4

Serial port 1

CN1

USB connector 2

USB2

Serial port 2

CN2

USB connector 1

USB1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP13

Pins 1 & 2 closed



CMOS memory clear

JP13

Pins 3 & 4 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

DIMM VOLTAGE CONFIGURATION

Voltage

JP22

JP23

3.3v

Pins 1 & 2 closed

Pins 1 & 2 closed

5v

Pins 2 & 3 closed

Pins 2 & 3 closed

CACHE CONFIGURATION

Size

Bank 0

256KB

(2) 32K x 32

512KB

(2) 64K x 32

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP2

JP3

120MHz

50MHz

2x

1 & 4

1 & 4, 2 & 5, 3 & 6

133MHz

55MHz

2x

1 & 4

2 & 5, 3 & 6

150MHz

60MHz

2x

1 & 4

1 & 4, 2 & 5

166MHz

66MHz

2x

1 & 4

1 & 4, 3 & 6

200MHz

75MHz

2x

1 & 4

2 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

JP2

JP3

120MHz

50MHz

2x

1 & 4

1 & 4, 2 & 5, 3 & 6

133MHz

55MHz

2x

1 & 4

2 & 5, 3 & 6

150MHz

60MHz

2x

1 & 4

1 & 4, 2 & 5

166MHz

66MHz

2x

1 & 4

1 & 4, 3 & 6

200MHz

75MHz

2x

1 & 4

2 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP2

JP3

75MHz

50MHz

1.5x

Open

1 & 4, 2 & 5, 3 & 6

90MHz

60MHz

1.5x

Open

1 & 4, 2 & 5

100MHz

66MHz

1.5x

Open

1 & 4, 3 & 6

120MHz

60MHz

2x

1 & 4

1 & 4, 2 & 5

133MHz

66MHz

2x

1 & 4

1 & 4, 3 & 6

150MHz

60MHz

2.5x

1 & 4, 2 & 5

1 & 4, 2 & 5

166MHz

66MHz

2.5x

1 & 4, 2 & 5

1 & 4, 3 & 6

180MHz

60MHz

3x

2 & 5

1 & 4, 2 & 5

200MHz

66MHz

3x

2 & 5

1 & 4, 3 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP2

JP3

166MHz

66MHz

2.5x

1 & 4, 2 & 5

1 & 4, 3 & 6

180MHz

60MHz

3x

2 & 5

1 & 4, 2 & 5

200MHz

66MHz

3x

2 & 5

1 & 4, 3 & 6

233MHz

66MHz

3.5x

Open

1 & 4, 3 & 6

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP2

JP3

75MHz

50MHz

1.5x

Open

1 & 4, 2 & 5, 3 & 6

90MHz

60MHz

1.5x

Open

1 & 4, 2 & 5

100MHz

66MHz

1.5x

Open

1 & 4, 3 & 6

120MHz

60MHz

2x

1 & 4

1 & 4, 2 & 5

133MHz

66MHz

2x

1 & 4

1 & 4, 3 & 6

150MHz

60MHz

2.5x

1 & 4, 2 & 5

1 & 4, 2 & 5

166MHz

66MHz

2.5x

1 & 4, 2 & 5

1 & 4, 3 & 6

180MHz

60MHz

3x

2 & 5

1 & 4, 2 & 5

200MHz

66MHz

3x

2 & 5

1 & 4, 3 & 6

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP1

2.8v

Open

2.9v

Pins 3 & 6 closed

3.2v

Pins 1 & 4 closed

3.4v

Pins 1 & 4, 2 & 5 closed

3.52v

Pins 1 & 4, 2 & 5, 3 & 6 closed
