IBM CORPORATION
INTELLISTATION Z PRO
|
Processor |
Pentium Pro |
|
Processor Speed |
200MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
1GB |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), riser slot, IR connector, VRM connector, USB connector, audio connectors (3), CD-ROM audio in, wake on modem connectors (2), wake on LAN connector |
|
NPU Options |
None |
|

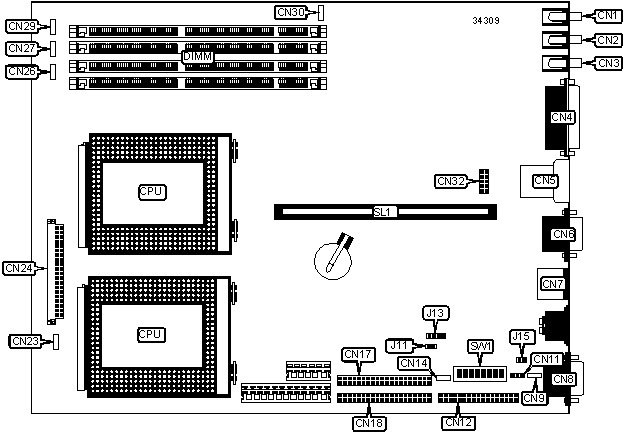

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Audio in |
CN1 |
IDE interface 2 |
CN18 |
|
Audio in |
CN2 |
Chassis fan power |
CN23 |
|
Audio in |
CN3 |
VRM connector |
CN24 |
|
Parallel port |
CN4 |
Power LED |
CN26 |
|
USB connector |
CN5 |
Front panel connector |
CN27 |
|
Serial port 1 |
CN6 |
Speaker |
CN29 |
|
PS/2 mouse port |
CN7 |
CD-ROM audio in |
CN30 |
|
IR connector |
CN8 |
Serial port 2 |
CN32 |
|
+5V auxiliary connector |
CN9 |
Wake on modem connector |
J11 |
|
Floppy drive interface |
CN12 |
Wake on modem connector |
J13 |
|
SCSI interface LED |
CN14 |
Wake on LAN connector |
J15 |
|
IDE interface 1 |
CN17 |
Riser slot |
SL1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
CMOS memory normal operation |
CN11 |
Pins 1 & 2 closed | |
|
CMOS memory clear |
CN11 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
SW1/6 |
Unidentified |
|
Serial port 2 enabled |
SW1/7 |
On | |
|
Serial port 2 disabled |
SW1/7 |
Off | |
|
Floppy drive write protect disabled |
SW1/8 |
Off | |
|
Floppy drive write protect enabled |
SW1/8 |
On | |
|
DIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(1) 1M x 64 |
None |
None |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
|
16MB |
(1) 2M x 64 |
None |
None |
None |
|
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
|
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
|
32MB |
(1) 4M x 64 |
None |
None |
None |
|
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
|
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
|
64MB |
(1) 8M x 64 |
None |
None |
None |
|
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
|
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
|
128MB |
(1) 16M x 64 |
None |
None |
None |
|
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
|
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
|
DIMM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
|
256MB |
(1) 32M x 64 |
None |
None |
None |
|
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
|
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
|
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
|
1GB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: The location of the banks is unidentified. | ||||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | |||||
|
CPU speed |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
|
200MHz |
On |
Off |
On |
On |
Off |
