Processor	CX M1/AM K5/Pentium
Processor Speed	75/90/100/120/133/150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (4), green PC connector, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), cache slot, USB connector
NPU Options	None

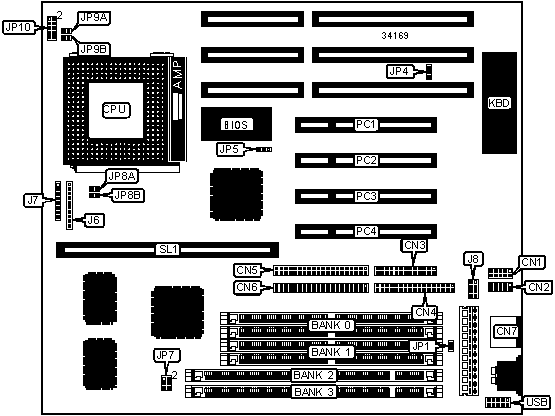

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	CN1	Reset switch	J7 pins 1 & 2
Serial port 2	CN2	IDE interface LED	J7 pins 3 & 4
Parallel port	CN3	Turbo LED	J7 pins 5 & 6
Floppy drive interface	CN4	Green PC connector	J7 pins 7 & 8
IDE interface 2	CN5	PS/2 mouse interface	J8
IDE interface 1	CN6	32-bit PCI slots	PC1 – PC4
PS/2 mouse port	CN7	Cache slot	SL1
Power LED & keylock	J6 pins 1 - 5	USB connector	USB
Speaker	J6 pins 7 - 10

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP1	Open
	CMOS memory clear	JP1	Closed
»	Flash BIOS voltage select 12v	JP5	Pins 1 & 2 closed
	Flash BIOS voltage select 5v	JP5	Pins 2 & 3 closed

DIMM/DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(2) 1M x 36	None	None	None
8MB	None	None	(1) 1M x 64	None
16MB	(2) 2M x 36	None	None	None
16MB	None	None	(1) 2M x 64	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None
16MB	(2) 1M x 36	None	None	(1) 1M x 64
16MB	None	None	(1) 1M x 64	(1) 1M x 64
24MB	None	(2) 2M x 36	(1) 1M x 64	None
32MB	(2) 4M x 36	None	None	None
32MB	None	None	(1) 4M x 64	None
32MB	(2) 2M x 36	None	None	(1) 2M x 64
32MB	None	(2) 2M x 36	(1) 2M x 64	None
40MB	(2) 4M x 36	(2) 1M x 36	None	None
40MB	(2) 4M x 36	None	None	(1) 1M x 64
48MB	(2) 2M x 36	None	None	(1) 4M x 64
48MB	(2) 4M x 36	(2) 2M x 36	None	None
48MB	(2) 4M x 36	None	None	(1) 2M x 64
64MB	(2) 8M x 36	None	None	None
64MB	None	None	None	(1) 8M x 64
64MB	(2) 4M x 36	(2) 4M x 36	None	None
64MB	(2) 4M x 36	None	None	(1) 4M x 64
64MB	None	None	(1) 4M x 64	(1) 4M x 64

DIMM/DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
72MB	(2) 8M x 36	(2) 1M x 36	None	None
72MB	(2) 8M x 36	None	None	(1) 1M x 64
80MB	None	(2) 2M x 36	(1) 8M x 64	None
80MB	(2) 2M x 36	None	None	(1) 8M x 64
80MB	(2) 8M x 36	(2) 2M x 36	None	None
80MB	(2) 8M x 36	None	None	(1) 2M x 64
96MB	(2) 4M x 36	None	None	(1) 8M x 64
96MB	(2) 8M x 36	(2) 4M x 36	None	None
96MB	(2) 8M x 36	None	None	(1) 4M x 64
128MB	None	None	(1) 8M x 64	(1) 8M x 64
128MB	(2) 8M x 36	(2) 8M x 36	None	None
128MB	(2) 8M x 36	None	None	(1) 8M x 64
Note: Board accepts EDO memory. Banks 0 & 1 and banks 2 & 3 are interchangeable.

DIMM VOLTAGE CONFIGURATION
Voltage		JP7
	3.3v	Pins 3 & 5, 4 & 6 closed
»	5v	Pins 1 & 3, 2 & 4 closed

CACHE CONFIGURATION
Size	SL1	TAG
256KB	256KB module installed	(1) 8K/16K/32K x 8
512KB	512KB module installed	(1) 16K/32K x 8

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	JP4	JP8A	JP8B	JP9A	JP9B
120MHz	50MHz	2x	2 & 3	Closed	Closed	Closed	Open
133MHz	55MHz	2x	N/A	Open	Open	Closed	Open
150MHz	60MHz	2x	1 & 2	Open	Closed	Closed	Open
166MHz	66MHz	2x	1 & 2	Closed	Open	Closed	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	JP4	JP8A	JP8B	JP9A	JP9B
75MHz	50MHz	1.5x	2 & 3	Closed	Closed	Open	Open
90MHz	60MHz	1.5x	1 & 2	Open	Closed	Open	Open
100MHz	66MHz	1.5x	1 & 2	Closed	Open	Open	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP4	JP8A	JP8B	JP9A	JP9B
75MHz	50MHz	1.5x	2 & 3	Closed	Closed	Open	Open
90MHz	60MHz	1.5x	1 & 2	Open	Closed	Open	Open
100MHz	66MHz	1.5x	1 & 2	Closed	Open	Open	Open
120MHz	60MHz	2x	1 & 2	Open	Closed	Closed	Open
133MHz	66MHz	2x	1 & 2	Closed	Open	Closed	Open
150MHz	60MHz	2.5x	1 & 2	Open	Closed	Closed	Closed
166MHz	66MHz	2.5x	1 & 2	Closed	Open	Closed	Closed
180MHz	60MHz	3x	1 & 2	Open	Closed	Open	Closed
200MHz	66MHz	3x	1 & 2	Closed	Open	Open	Closed
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION
Voltage		JP10
	2.7v	Pins 7 & 8 closed
	2.8v	Pins 5 & 6 closed
	2.9v	Pins 3 & 4 closed
	3.3v	Pins 9 & 10 closed
»	3.5v	Pins 1 & 2 closed
