IBM CORPORATION

PC 360-S150 (TYPE 6598)

Processor

Pentium

Processor Speed

150/200MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

128MB

Maximum Video Memory

None

Cache

None

BIOS

None Unidentified

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), CD-ROM interface, floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2)

NPU Options

None

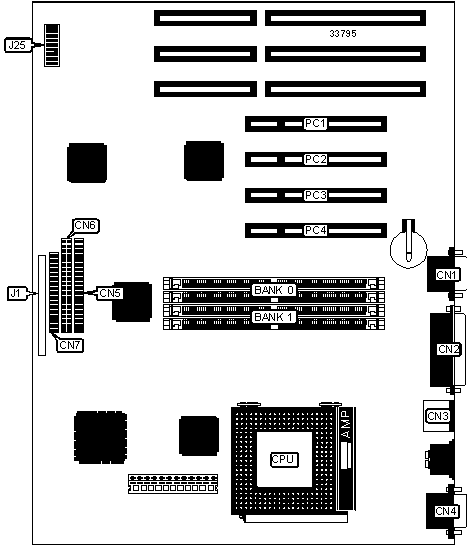

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

IDE interface

CN6

Parallel port

CN2

Floppy drive interface

CN7

PS/2 mouse port

CN3

Front panel connector

J1

Serial port 1

CN4

32-bit PCI slots

PC1 - PC4

CD-ROM interface

CN5



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password normal operation

J25

Pins 14 & 15 closed



Password clear

J25

Pins 13 & 14 closed

»

CMOS memory normal operation

J25

Pins 17 & 18 closed



CMOS memory clear

J25

Pins 16 & 17 closed

»

Setup access enabled

J25

Pins 20 & 21 closed



Setup access disabled

J25

Pins 19 & 20 closed

»

Flash BIOS normal operation

J25

Pins 23 & 24 closed



Flash BIOS recovery mode

J25

Pins 22 & 23 closed

»

Factory configured - do not alter

J25

Pins 26 & 27 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

16MB

(2) 2M x 36

None

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

J25

150MHz

60MHz

2.5x

1 & 2, 4 & 5, 7 & 8, 11 & 12

200MHz

66MHz

3x

2 & 3, 5 & 6, 7 & 8, 10 & 11
