IBM CORPORATION
PC SERVER 320 (TYPE 8640)
MODELS MXO, MXT, MYO, MYT, MYR
|
Processor |
Pentium |
|
Processor Speed |
75/90MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
256MB |
|
Maximum Video Memory |
Unidentified |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
External memory card, 32-bit PCI slots (2), floppy drive interface,IDE interface, SCSI connectors (3), parallel port, PS/2 mouse port, serial ports (2), VGA port, cache slot |
|
NPU Options |
None |
|

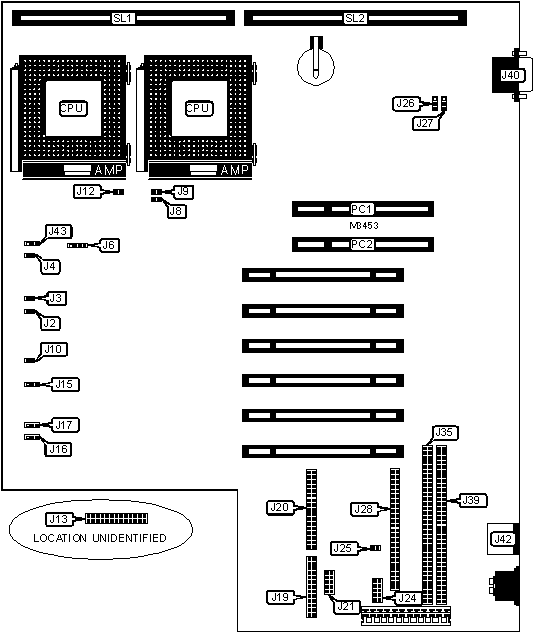

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
SCSI interface LED |
J2 |
Serial port 1 |
J24 |
|
IDE interface LED |
J3 |
Reset switch |
J25 |
|
Chassis fan power |
J4 |
SCSI interface |
J28 |
|
Speaker |
J6 |
SCSI fast/wide internal interface |
J35 |
|
Chassis fan power |
J8 |
SCSI fast/wide external interface |
J39 |
|
Chassis fan power |
J9 |
VGA port |
J40 |
|
Power LED |
J10 |
PS/2 mouse port |
J42 |
|
IDE interface |
J13 |
32-bit PCI slots |
PC1 & PC2 |
|
Parallel port |
J19 |
Cache slot |
SL1 |
|
Floppy drive interface |
J20 |
External memory card |
SL2 |
|
Serial port 2 |
J21 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J12 |
Open |
|
Password write enabled |
J15 |
Pins 2 & 3 closed | |
|
Password write disabled |
J15 |
Pins 1 & 2 closed | |
|
C2 cover open |
J16 |
Unidentified | |
|
C2 keylock |
J17 |
Unidentified | |
|
» |
On board SCSI enabled |
J26 |
Pins 1 & 2 closed |
|
On board SCSI disabled |
J26 |
Pins 2 & 3 closed | |
|
» |
On board video enabled |
J27 |
Pins 1 & 2 closed |
|
On board video disabled |
J27 |
Pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(2) 1M x 36 |
None |
None |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
None |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
None |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
None |
|
32MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
32MB |
(2) 4M x 36 |
None |
None |
None |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
None |
None |
|
40MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
40MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
None |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
None |
None |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
None |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
56MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
56MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
None |
|
64MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
64MB |
(2) 8M x 36 |
None |
None |
None |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
None |
None |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
None |
None |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
None |
None |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
88MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
None |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
None |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
104MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
112MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
None |
|
128MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
136MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
144MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
160MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
160MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
200MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
208MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
224MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
256MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Memory is located on the external memory card. | ||||
|
CACHE CONFIGURATION | |
|
Size |
SL1 |
|
256KB |
256KB module installed |
|
512KB |
512KB module installed |
|
CPU SPEED SELECTION | ||
|
CPU speed |
Clock speed |
J43 |
|
75MHz |
50MHz |
Pins 2 & 3 closed |
|
90MHz |
60MHz |
Pins 1 & 2 closed |
