ICL

ERGOPRO D5/60

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

256KB

BIOS

ICL

Dimensions

330mm x 218mm

I/O Options

PS/2 mouse port, parallel port, serial ports (2), VGA port, VGA feature connector, floppy drive interface, IDE interface, riser slots (2)

NPU Options

None

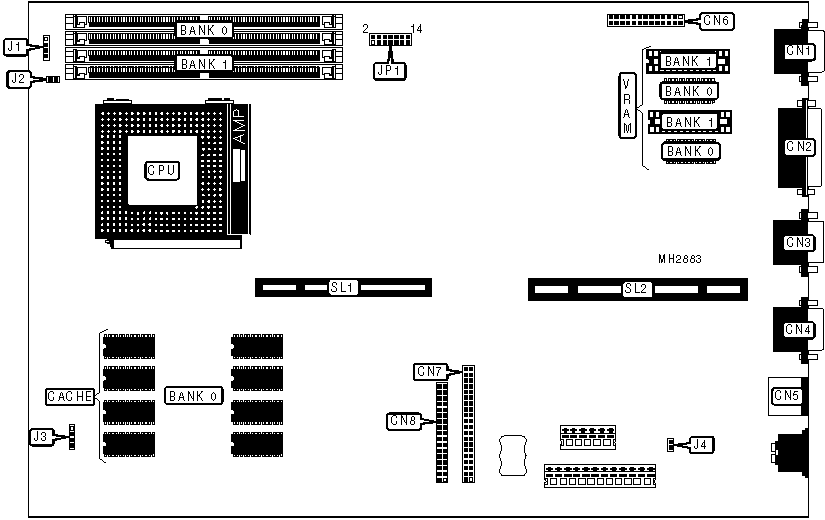

CONNECTIONS

Purpose

Location

Purpose

Location

VGA port

CN1

Floppy drive interface

CN8

Parallel port

CN2

IDE interface LED

J1

Serial port 2

CN3

Chassis fan power

J2

Serial port 1

CN4

Front panel connector

J3

PS/2 mouse port

CN5

Chassis fan power

J4

VGA feature connector

CN6

Riser Card

SL1 & SL2

IDE interface

CN7



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

On board VGA enabled

JP1

pins 1 & 2 open



On board VGA disabled

JP1

pins 1 & 2 closed

»

CMOS memory normal operation

JP1

pins 3 & 4 closed



CMOS memory clear

JP1

pins 5 & 6 closed

»

System lock disabled

JP1

pins 11 & 12 closed



System lock enabled

JP1

pins 9 & 10 closed

»

Boot block BL RE normal operation

JP1

pins 13 & 14 open



Boot block BL RE reload enabled

JP1

pins 13 & 14 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

256KB

(8) 32K x 8

Note:Cache is factory installed and is not configurable.

CPU SPEED CONFIGURATION

Speed

JP1

60MHz

pins 7 & 8 open

66MHz

pins 7 & 8 closed

VRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K X 16

NONE

2MB

(2) 256K X 16

(2) 256K X 16

Note:Bank 0 is factory installed and is not configurable.
