INTEL CORPORATION

PTI-5 ADVANCED/ZP

Processor

Pentium

Processor Speed

50/60MHz

Chip Set

Intel

Max. Onboard DRAM

128MB

Cache

256KB

BIOS

AMI

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (3), green PC connector, floppy drive interface, IDE interfaces (2), parallel port, serial ports (2)

NPU Options

None

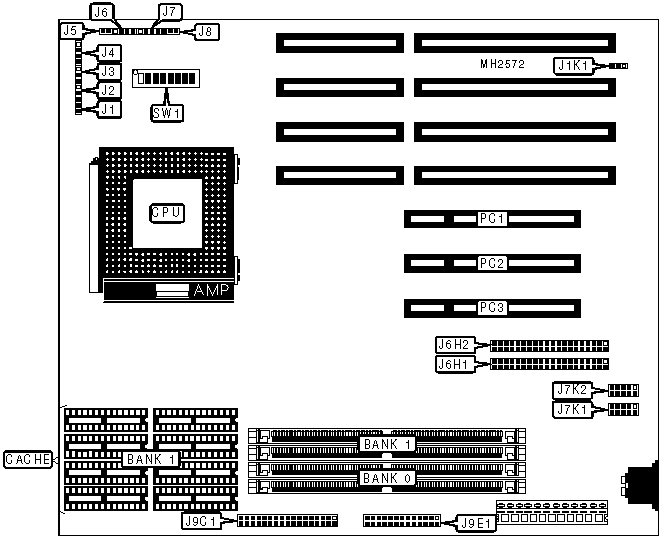

CONNECTIONS

Purpose

Location

Purpose

Location

Green PC connector

J1

IDE interface (primary)

J6H1

Infra red connector

J2

IDE interface (secondary)

J6H2

Chassis fan power

J3

Serial port 1

J7K1

Speaker

J4

Serial port 2

J7K2

Turbo LED

J5

Floppy drive interface

J9C1

IDE interface LED

J6

Parallel port

J9E1

Power LED & keylock

J7

32-bit PCI slots

PC1 - PC3

Reset switch

J8



USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

Recovery boot enabled

J1K1

pins 1 & 2 closed



Recovery boot disabled

J1K1

pins 2 & 3 closed

»

ISA bus speed select 1/3

SW1/1

Off



ISA bus speed select 1/4

SW1/1

On

»

Processor voltage regulator select VR type processor

SW1/2

Off



Processor voltage regulator select VRE type processor

SW1/2

On

»

Password normal operation

SW1/3

Off



Password clear

SW1/3

On

»

CMOS memory normal operation

SW1/4

Off



CMOS memory clear

SW1/4

On

»

Setup entry enabled

SW1/5

Off



Setup entry disabled

SW1/5

On

»

Internal clock speed select 3/2x

SW1/6

Off



Internal clock speed select 2x

SW1/6

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

NONE

(2) 1M x 36

8MB

(2) 1M x 36

NONE

16MB

NONE

(2) 2M x 36

16MB

(2) 1M x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

24MB

(2) 1M x 36

(2) 2M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

NONE

(2) 4M x 36

32MB

(2) 2M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

40MB

(2) 1M x 36

(2) 4M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 2M x 36

(2) 4M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

NONE

(2) 8M x 36

64MB

(2) 4M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

72MB

(2) 1M x 36

(2) 8M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 2M x 36

(2) 8M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 4M x 36

(2) 8M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 1

256KB

(8) 32K x 8

CPU SPEED CONFIGURATION

Speed

SW1/7

SW1/8

50MHz

Off

Off

60MHz

On

Off
