IBM CORPORATION
PS/VALUEPOINT 6384 325T, 325T/S
|
Processor |
CX386SLC |
|
Processor Speed |
25/50(internal)MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
18MB |
|
Cache |
None |
|
BIOS |
IBM |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit riser card slot, floppy drive interface, hard drive interface, parallel port, PS/2 mouse port, serial port, video port |
|
NPU Options |
CX387SLC |
|

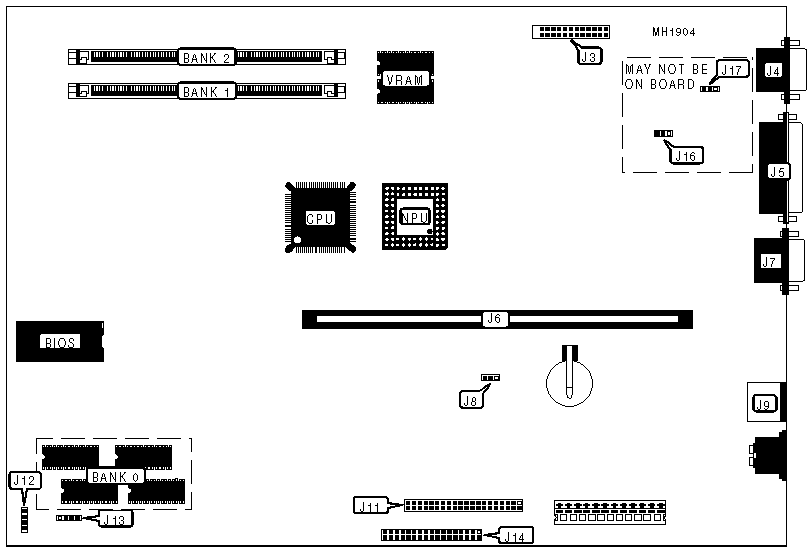

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Video feature connector |
J3 |
PS/2 mouse port |
J9 |
|
VGA port |
J4 |
Hard drive interface |
J11 |
|
Parallel port |
J5 |
Speaker |
J12 |
|
Riser Card |
J6 |
Floppy drive interface |
J14 |
|
Serial port 1 |
J7 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Password enabled |
J8 |
pins 1 & 2 closed |
|
Password disabled |
J8 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(4) 512K x 9 |
NONE |
NONE |
|
3MB |
(4) 512K x 9 |
(1) 256K x 36 |
NONE |
|
4MB |
(4) 512K x 9 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(4) 512K x 9 |
(1) 1M x 36 |
NONE |
|
10MB |
(4) 512K x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
|
18MB |
(4) 512K x 9 |
(1) 4M x 36 |
NONE |
