INFORMTECH INTERNATIONAL, INC.
IT486SMVG MINI
|
Processor |
80486SX/80487SX/CX486DX/80486DX/ODP486SX CX486DX2/80486DX2/Pentium Overdrive |
|
Processor Speed |
20/25/33/40/50(internal)/50/66(internal)MHz |
|
Chip Set |
FOREX |
|
Max. Onboard DRAM |
64MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (3) |
|
NPU Options |
None |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J6 |
External battery |
JP1 |
|
Speaker |
J7 |
32-bit VESA Local bus slot |
S1 |
|
Turbo switch |
J8 |
32-bit VESA Local bus slot |
S2 |
|
Power LED & keylock |
J9 |
32-bit VESA Local bus slot |
S3 |
|
Reset switch |
J10 |
|
|
|

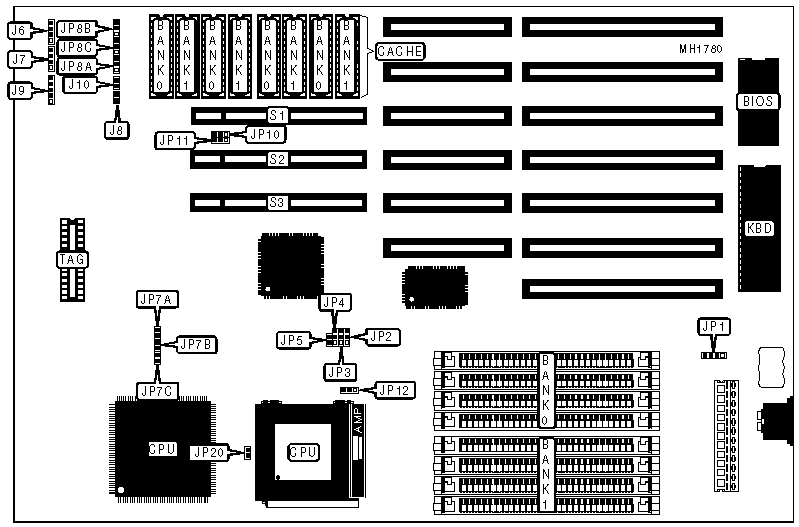

USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
CPU PQFP enabled |
JP5 |
Open |
|
|
CPU PQFP disabled |
JP5 |
Closed |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
64MB |
(4) 16M x 9 |
NONE |
|
CACHE CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 4 |
|
CACHE JUMPER CONFIGURATION |
|||
|
Size |
JP8A |
JP8B |
JP8C |
|
64KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
128KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CPU TYPE CONFIGURATION |
|||||
|
Type |
JP2 |
JP3 |
JP4 |
JP12 |
JP20 |
|
80486SX |
pins 2 & 3 |
pins 2 & 3 |
pins 2 & 3 |
pins 1 & 2 |
N/A |
|
80487SX |
pins 2 & 3 |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
N/A |
|
CX486DX |
N/A |
N/A |
N/A |
N/A |
Open |
|
80486DX |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
N/A |
|
80486DX (PQFP) |
pins 2 & 3 |
pins 2 & 3 |
pins 2 & 3 |
pins 1 & 2 |
N/A |
|
ODP486SX |
pins 2 & 3 |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
N/A |
|
CX486DX2 |
N/A |
N/A |
N/A |
N/A |
Closed |
|
80486DX2 |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
N/A |
|
Pentium Overdrive |
pins 1 & 2 |
pins 1 & 2 |
pins 1 & 2 |
pins 2 & 3 |
N/A |
|
Note:Pins designated should be in the closed position. |
|||||
|
CPU SPEED CONFIGURATION |
|||
|
Speed |
JP7A |
JP7B |
JP7C |
|
20MHz |
Open |
Closed |
Closed |
|
25MHz |
N/A |
Open |
Open |
|
33MHz |
Open |
Open |
Open |
|
40MHz |
Closed |
Closed |
Open |
|
50i MHz |
N/A |
Open |
Open |
|
50MHz |
Open |
Closed |
Open |
|
66i MHz |
Open |
Open |
Open |
|
VESA WAIT STATE/BUS SPEED CONFIGURATION |
|||
|
CPU speed |
Wait states |
JP10 |
JP11 |
|
< 33 MHz |
0 wait states |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
> 33 MHz |
1 wait state |
pins 2 & 3 closed |
pins 2 & 3 closed |
