KINGSTON TECHNOLOGY CORPORATION

SX/33LZM

Processor

80386SX (Replaces 80286)

Processor Speed

33MHz

Chip Set

Kingston

Max. Onboard DRAM

None

Cache

16KB

BIOS

None

Dimensions

64mm x 51mm

I/O Options

None

NPU Options

80387SX

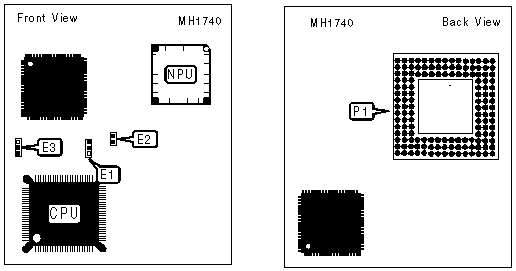

CONNECTIONS

Purpose

Location

Processor upgrade to system board connector

P1

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

E1

pins 2 & 3 closed

»

Factory configured - do not alter

E2

Open

»

NPU disabled

E3

pins 1 & 2 closed



NPU enabled

E3

pins 2 & 3 closed
