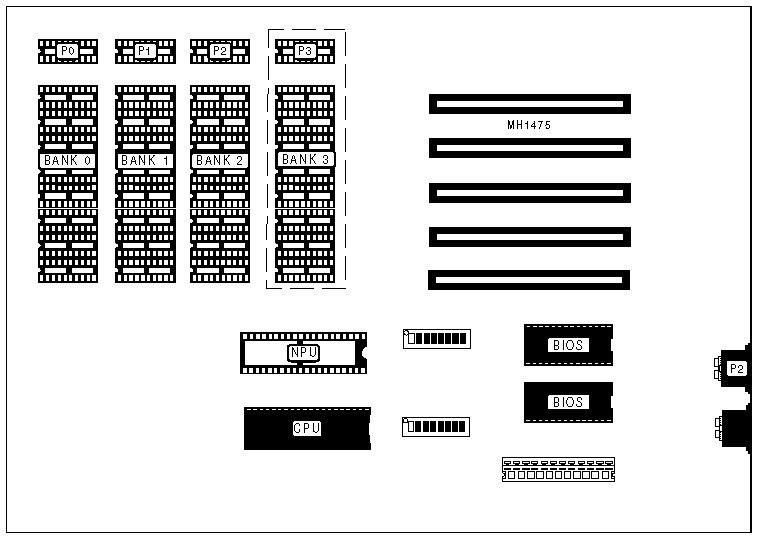

IBM CORPORATION
PERSONAL COMPUTER
|
Processor |
8088 |
|
Processor Speed |
8MHz |
|
Chip Set |
None |
|
Max. Onboard DRAM |
64KB |
|
Cache |
None |
|
BIOS |
AMI/MR |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
Cassette interface |
|
NPU Options |
8087 |
|
CONNECTIONS | |
|
Purpose |
Location |
|
Cassette interface |
P2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
| » |
NPU enabled |
SW1/switch 2 |
on |
|
NPU disabled |
SW1/switch 2 |
off | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
16KB |
(9) 4116 |
NONE |
NONE |
NONE |
|
32KB |
(9) 4116 |
(9) 4116 |
NONE |
NONE |
|
48KB |
(9) 4116 |
(9) 4116 |
(9) 4116 |
NONE |
|
64KB |
(9) 4116 |
(9) 4116 |
(9) 4116 |
(9) 4116 |
|
DRAM CONFIGURATION - SWITCH SW1 | ||||||||
|
Size |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
16KB |
off |
off |
on |
on |
off |
off |
off |
off |
|
32KB |
off |
off |
off |
on |
off |
off |
off |
off |
|
48KB |
off |
off |
on |
off |
off |
off |
off |
off |
|
64KB |
off |
off |
on |
off |
off |
off |
off |
off |
|
. DRAM CONFIGURATION - SWITCH SW2 | ||||||||
|
Size |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
16KB |
on |
on |
on |
on |
on |
off |
off |
off |
|
32KB |
on |
on |
on |
on |
on |
off |
off |
off |
|
48KB |
on |
on |
on |
on |
on |
off |
off |
off |
|
64KB |
on |
on |
on |
on |
on |
off |
off |
off |
.
|
FLOPPY DRIVES INSTALLED | |||
|
Drives |
SW1/1 |
SW1/7 |
SW1/8 |
|
0 |
On |
On |
On |
|
1 |
Off |
On |
On |
|
2 |
Off |
Off |
On |
.
|
MONITOR TYPE CONFIGURATION | ||
|
Type |
SW1/5 |
SW1/6 |
|
Color 40 x 25 |
Off |
On |
|
Color 80 x 25 |
On |
Off |
|
Monochrome |
Off |
Off |
