LION COMPUTERS, INC.
486-SUPER EISA/VP
|
Processor |
80486SX/80487SX/80486DX/ODP486SX/80486DX2/ODP586SX |
|
Processor Speed |
16/20/25/33/40/50(internal)/50/66(internal)MHz |
|
Chip Set |
SIS |
|
Max. onboard DRAM |
256MB |
|
Cache |
256/512/1024KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA card slot |
|
NPU Options |
None |
|

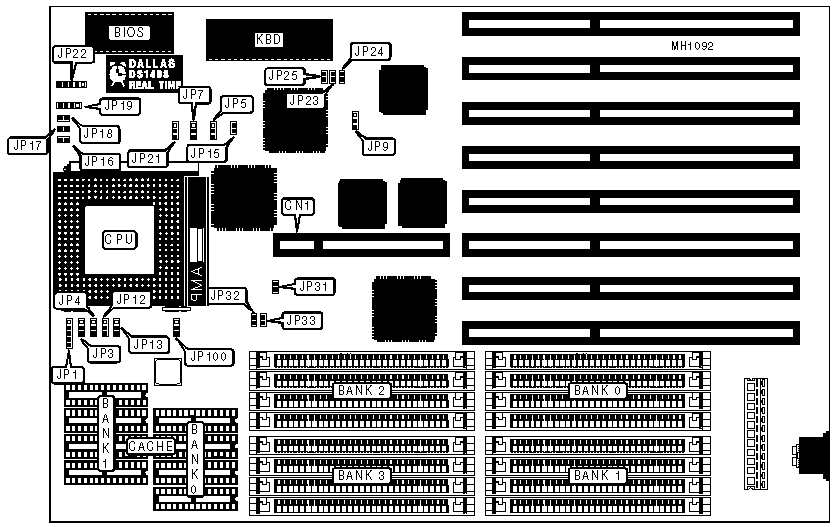

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
32-bit VESA card |
CN1 |
Reset switch |
JP18 |
|
Turbo LED |
JP16 |
Speaker |
JP19 |
|
Turbo switch |
JP17 |
Power LED & keylock |
JP22 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
JP9 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
JP21 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
JP23 |
Closed |
| » |
Monitor type select monochrome |
JP24 |
Closed |
|
Monitor type select color |
JP24 |
Open | |
| » |
Password check normal operation |
JP25 |
Open |
|
Password clear |
JP25 |
Closed | |
| » |
Factory configured - do not alter |
JP31 |
Closed |
| » |
Factory configured - do not alter (VESA host ID select) |
JP32 |
Closed |
| » |
Factory configured - do not alter (VESA host ID select) |
JP33 |
Closed |
| » |
Factory configured - do not alter |
JP100 |
pins 2 & 3 closed |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
6MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
10MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
18MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
24MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
36MB |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
40MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
64MB |
(4) 16M x 9 |
NONE |
NONE |
NONE |
|
128MB |
(4) 16M x 9 |
(4) 16M x 9 |
NONE |
NONE |
|
192MB |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
NONE |
|
256MB |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
(4) 16M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
|
512KB |
(4) 128K x 8 |
NONE |
|
1024KB |
(4) 128K x 8 |
(4) 128K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP1 |
JP3 |
JP4 |
JP12 |
JP13 |
|
256KB |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
512KB |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
1024KB |
4 & 5 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note:Pins designated should be in the closed position. | |||||
|
CPU TYPE CONFIGURATION | |||
|
Type |
JP5 |
JP7 |
JP15 |
|
80486SX |
Open |
pins 2 & 3 closed |
Open |
|
80487SX |
pins 2 & 3 closed |
pins 1 & 2 closed |
Closed |
|
ODP486SX |
pins 2 & 3 closed |
pins 1 & 2 closed |
Closed |
|
80486DX |
pins 1 & 2 closed |
pins 1 & 2 closed |
Closed |
|
80486DX2 |
pins 1 & 2 closed |
pins 1 & 2 closed |
Closed |
|
ODP586SX |
pins 1 & 2 closed |
pins 1 & 2 closed |
Closed |
|
Note:The ODP586SX chip is not supported by earlier revisions of this system board. | |||
