IBM CORPORATION

PS/2 MODEL P70 386

Processor

80386DX

Processor Speed

16/20MHz

Chip Set

None

Max. Onboard DRAM

8MB

Cache

None

BIOS

IBM

Dimensions

330mm x 218mm

I/O Options

Serial port, parallel port, pointing device connector, hard drive connector, floppy drive interface, plasma display port, external storage device connector

NPU Options

80387

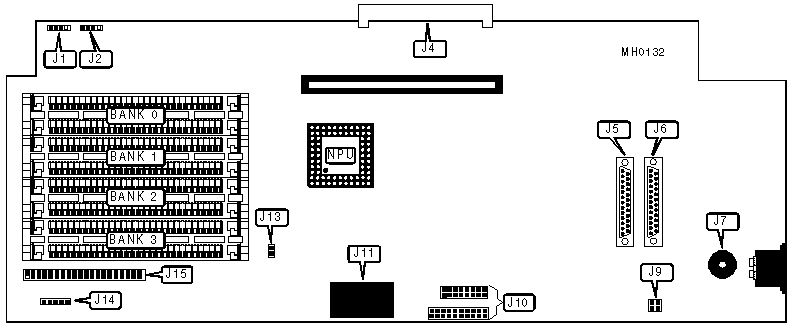

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

J1

External storage device

J9

Battery

J2

Hard drive interface

J10

Plasma display port

J4

Power supply

J11

Parallel port

J5

Indicator

J14

Serial port

J6

Floppy drive interface

J15

Pointing device

J7



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Password enabled

J13

Open



Password disabled

J13

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

2MB

(2) 1M x 9

NONE

NONE

NONE

4MB

(2) 1M x 9

(2) 1M x 9

NONE

NONE

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

NONE

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

Note:Onboard memory does not have to be installed in order to use memory expansion cards.
