Device Type	Mainboard
Processor	Pentium
Processor Speed	75/100/133MHz
Chip Set	Intel
Video Chip Set	Cirrus Logic
Maximum Onboard Memory	128MB
Maximum Video Memory	2MB
Cache	256KB
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, cache slot, VRM connector
NPU Options	None

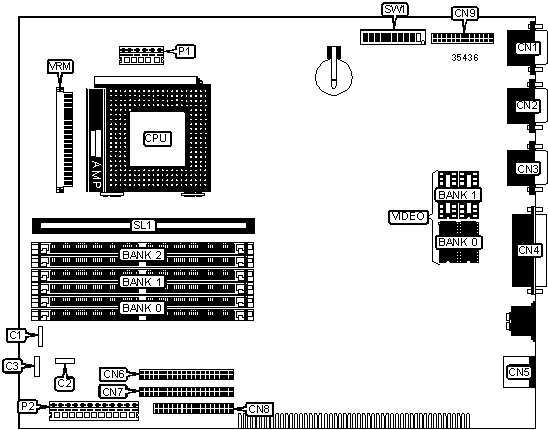

CONNECTIONS
Purpose	Location	Purpose	Location
Status panel connector	C1	IDE interface 1	CN6
External battery	C2	IDE interface 2	CN7
Speaker	C3	Floppy drive interface	CN8
VGA port	CN1	VGA feature connector	CN9
Serial port 2	CN2	3.3v power supply	P1
Serial port 1	CN3	5v power supply	P2
Parallel port	CN4	Cache slot	SL1
PS/2 mouse port	CN5	VRM connector	VRM

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Password enabled	SW1/5	Off
	Password disabled	SW1/5	On
»	CMOS memory normal operation	SW1/6	Off
	CMOS memory clear	SW1/6	On
»	Setup access enabled	SW1/8	Off
	Setup access disabled	SW1/8	On
»	Keyboard power on disabled	SW1/9	Off
	Keyboard power on enabled	SW1/9	On
»	Factory configured - do not alter	SW1/10	Off

SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(2) 1M x 36	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 2M x 36	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 2M x 36	None
32MB	(2) 4M x 36	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None
64MB	(2) 8M x 36	None	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None
128MB	(2) 16M x 36	None	None

CACHE CONFIGURATION
Size	SL1
None	Not installed
256KB	256KB module installed

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 16	None
2MB	(2) 256K x 16	(2) 256K x 16

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/7
75MHz	50MHz	1.5x	On	On	Off	Off	Off
100MHz	66MHz	1.5x	Off	On	Off	Off	On
133MHz	66MHz	2x	Off	On	On	Off	On
