Device Type	Mainboard
Processor	Pentium
Processor Speed	133/166/180/200MHz
Chip Set	Unidentified
Video Chip Set	Unidentified
Maximum Onboard Memory	128MB
Maximum Video Memory	2MB
Cache	256KB
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, cache slot
NPU Options	None

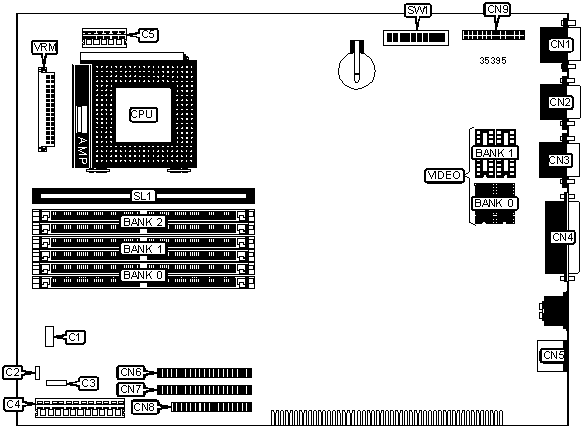

CONNECTIONS
Purpose	Location	Purpose	Location
Status connector panel	C1	Parallel port	CN4
Speaker	C2	PS/2 mouse port	CN5
External battery	C3	IDE interface 1	CN6
5v power	C4	IDE interface 2	CN7
3.3v power	C5	Floppy drive interface	CN8
VGA port	CN1	VGA feature connector	CN9
Serial port 2	CN2	Cache slot	SL1
Serial port 1	CN3	VRM connector	VRM

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Password enabled	SW1/5	Off
	Password disabled	SW1/5	On
»	CMOS memory normal operation	SW1/6	Off
	CMOS memory clear	SW1/6	On
»	Flash BIOS write protect enabled	SW1/8	Off
	Flash BIOS write protect disabled	SW1/8	On
»	Keyboard power on disabled	SW1/9	Off
	Keyboard power on enabled	SW1/9	On
»	Factory configured - do not alter	SW1/10	Off

SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	(2) 2M x 36	None	None
24MB	(2) 1M x 36	(2) 1M x 36	(2) 1M x 36
32MB	(2) 2M x 36	(2) 2M x 36	None
32MB	(2) 4M x 36	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None
64MB	(2) 8M x 36	None	None
96MB	(2) 4M x 36	(2) 4M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36	None

CACHE CONFIGURATION
Size	SL1
0KB	Not installed
256KB	256KB module installed

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256K x 16	None
2MB	(2) 256K x 16	(2) 256K x 16

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/7
133MHz	66MHz	2x	Off	On	On	Off	On
166MHz	66MHz	2.5x	Off	On	On	On	On
180MHz	60MHz	3x	On	Off	Off	On	On
200MHz	66MHz	3x	Off	On	Off	On	On
