ELITEGROUP COMPUTER SYSTEMS, INC.

MONIPUTER

Device Type

Mainboard

Processor

CX 6X86/IBM 6X86/CX 686MX/IBM 6X86MX/AM K5/AM K6/Pentium

Processor Speed

75/90/100/120/133/150/166/200/233MHz

Chip Set

Intel

Video Chip Set

ATI

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

4MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

Game/MIDI port, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, riser slot, line in, line out, TV line in, modem line in, TV tuner connector

NPU Options

None

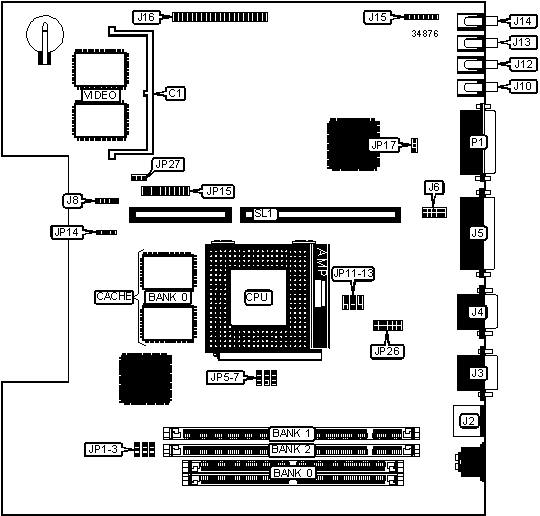

CONNECTIONS

Purpose

Location

Purpose

Location

Video memory bracket

C1

TV line in

J13

PS/2 mouse port

J2

Modem line in

J14

Serial port 1

J3

Internal modem audio

J15

Serial port 2

J4

ATI feature connector

J16

Parallel port

J5

CPU fan power

JP14

USB connector

J6

VGA interface

JP15

TV tuner connector

J8

Game/MIDI port

P1

Line in

J10

Riser slot

SL1

Line out

J12



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password normal operation

JP17

Pins 2 & 3 closed



Password clear

JP17

Pins 1 & 2 closed



On board video enabled

JP27

Pins 2 & 3 closed



On board video disabled

JP27

Pins 1 & 2 closed

SIMM CONFIGURATION

Size

Bank 0

8MB

(2) 1M x 36

16MB

(2) 2M x 36

32MB

(2) 4M x 36

64MB

(2) 8M x 36

128MB

(2) 16M x 36

256MB

(2) 32M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 1

Bank 2

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

DIMM CONFIGURATION (CON’T)

Size

Bank 1

Bank 2

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts SDRAM memory.

DIMM/SIMM VOLTAGE CONFIGURATION

Voltage

JP1

JP2

JP3

»

3.3v

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



5v

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

CACHE CONFIGURATION

Size

Bank 0

256KB

(2) 32K x 32

512KB

(2) 64K x 32

VIDEO MEMORY CONFIGURATION

Note: Board accepts 2MB/4MB video memory. The configuration is unidentified.

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

120MHz

50MHz

2x

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

133MHz

55MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

150MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

120MHz

50MHz

2x

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

133MHz

55MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

150MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

166MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

150MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

150MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

75MHz

50MHz

1.5x

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

90MHz

60MHz

1.5x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

100MHz

66MHz

1.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

120MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

150MHz

60MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

233MHz

66MHz

3.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

75MHz

50MHz

1.5x

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

90MHz

60MHz

1.5x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2

100MHz

66MHz

1.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

120MHz

60MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

150MHz

60MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP5

JP6

JP7

JP11

JP12

JP13

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2

233MHz

66MHz

3.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP26/pins

1 & 2

JP26/pins

3 & 4

JP26/pins

7 & 8

JP26/pins

9 & 10

JP26/pins

11 & 12

2.5v

Open

Open

Open

Open

Closed

2.8v

Open

Open

Open

Closed

Open

2.9v

Open

Open

Closed

Open

Open

3.2v

Open

Closed

Open

Open

Open

3.3v

Closed

Open

Open

Open

Open
