Processor	80386
Processor Speed	20MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	16MB (located external memory card)
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	External memory card
NPU Options	80387

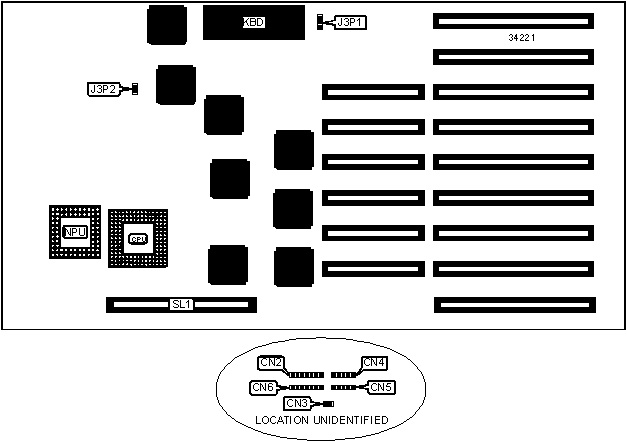

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED/keylock & speaker	CN2	Power supply connector	CN5
External battery	CN3	Power supply connector	CN6
Auxiliary keyboard connector	CN4	External memory slot	SL1

USER CONFIGURABLE SETTINGS
Function		Label	Position
	BIOS type select 27256	J3P1	Unidentified
	BIOS type select 27128	J3P1	Unidentified
	NPU not installed	J3P2	Open
	NPU installed	J3P2	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(4) 256K x 9	None	None	None
2MB	(4) 256K x 9	(4) 256K x 9	None	None
4MB	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	None	None	None
8MB	(4) 1M x 9	(4) 1M x 9	None	None
10MB	(4) 1M x 9	(4) 1M x 9	(4) 256K x 9	(4) 256K x 9
16MB	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9	(4) 1M x 9
Note: The memory is located on an external memory card.
