EFA CORPORATION

P5TVX-AT

Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

280mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, USB connectors (2)

NPU Options

None

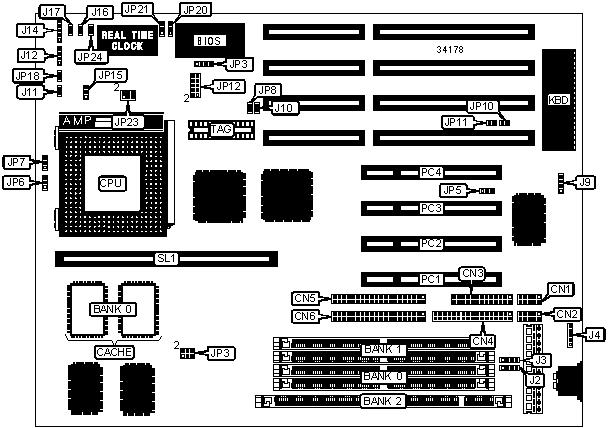

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

Green PC connector

J10

Serial port 2

CN2

IDE interface LED

J11

Parallel port

CN3

Speaker

J12

Floppy drive interface

CN4

Power LED & keylock

J14

IDE interface 1

CN5

Reset switch

J16

IDE interface 2

CN6

Turbo LED

J17

USB connector

J2

External battery

JP3

USB connector

J3

Turbo switch

JP18

PS/2 mouse interface

J4

32-bit PCI slots

PC1 – PC4

IR connector

J9

Cache slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

I/O chip M5113 enabled

JP5

Pins 1 & 2 closed



I/O chip M5113 disabled

JP5

Pins 2 & 3 closed

»

AT bus clock select /4

JP8

Closed



AT bus clock select /3

JP8

Open

»

Monitor type select color

JP10

Closed



Monitor type select monochrome

JP10

Open

»

Mouse type select PS/2

JP11

Closed



Mouse type select AT

JP11

Open

»

Factory configured – do not alter

JP15

Unidentified

»

Flash ROM select 1MB

JP20

Pins 1 & 2 closed



Flash ROM select 2MB

JP20

Pins 2 & 3 closed

»

Flash BIOS voltage select 5v

JP21

Pins 1 & 2 closed



Flash BIOS voltage select 12v

JP21

Pins 2 & 3 closed

»

CMOS memory normal operation

JP24

Open



CMOS memory clear

JP24

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Do not install SIMMs & DIMMs at the same time.

DIMM CONFIGURATION

Size

Bank 2

8MB

(1) 1M x 64

16MB

(1) 2M x 64

32MB

(1) 4M x 64

CACHE CONFIGURATION

Size

Bank 0

SL1

TAG

256KB

(2) 32K x 32

Not installed

Unidentified

512KB

(2) 32K x 32

256KB module installed

Unidentified

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP3

JP6

JP7

120MHz

50MHz

2x

3 & 5, 4 & 6

2 & 3

1 & 2

133MHz

55MHz

2x

1 & 3, 2 & 4

2 & 3

1 & 2

150MHz

60MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 2

166MHz

66MHz

2x

1 & 3, 4 & 6

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP3

JP6

JP7

75MHz

50MHz

1.5x

3 & 5, 4 & 6

2 & 3

2 & 3

90MHz

60MHz

1.5x

2 & 4, 3 & 5

2 & 3

2 & 3

100MHz

66MHz

1.5x

1 & 3, 4 & 6

2 & 3

2 & 3

120MHz

60MHz

1.5x

2 & 4, 3 & 5

2 & 3

2 & 3

133MHz

66MHz

1.5x

1 & 3, 4 & 6

2 & 3

2 & 3

150MHz

60MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 2

166MHz

66MHz

2x

1 & 3, 4 & 6

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP3

JP6

JP7

75MHz

50MHz

1.5x

3 & 5, 4 & 6

2 & 3

2 & 3

90MHz

60MHz

1.5x

2 & 4, 3 & 5

2 & 3

2 & 3

100MHz

66MHz

1.5x

1 & 3, 4 & 6

2 & 3

2 & 3

120MHz

60MHz

2x

2 & 4, 3 & 5

2 & 3

1 & 2

133MHz

66MHz

2x

1 & 3, 4 & 6

2 & 3

1 & 2

150MHz

60MHz

2.5x

2 & 4, 3 & 5

1 & 2

1 & 2

166MHz

66MHz

2.5x

1 & 3, 4 & 6

1 & 2

1 & 2

200MHz

66MHz

3x

1 & 3, 4 & 6

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP23

Cyrix

Pins 3 & 5, 4 & 6 closed

AMD

Pins 3 & 5, 4 & 6 closed

P54C

Pins 3 & 5, 4 & 6 closed

CX6X86L

Pins 1 & 3, 2 & 4 closed

P55C

Pins 1 & 3, 2 & 4 closed

CPU VOLTAGE SELECTION

Voltage

V core

JP12

3.3v

2.5v

Pins 1 & 2, 7 & 8 closed

3.3v

2.7v

Pins 3 & 4, 7 & 8 closed

3.3v

2.8v

Pins 5 & 6, 7 & 8 closed

3.52v

2.5v

Pins 1 & 2, 9 & 10 closed

3.52v

2.7v

Pins 3 & 4, 9 & 10 closed

3.52v

2.8v

Pins 5 & 6, 9 & 10 closed
