Processor	CX M1/IBM/AM K5/Pentium
Processor Speed	75/90/100/120/133/150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Unidentified
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), cache slot, IR connector, USB connectors (2), ATX power connector
NPU Options	None

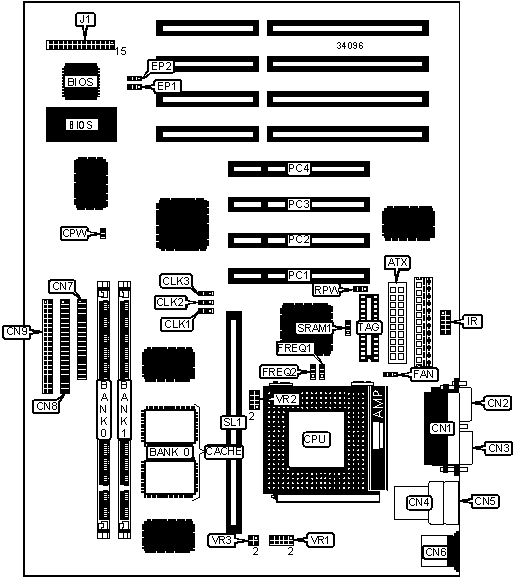

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	Power LED & keylock	J1 pins 1 - 5
Parallel port	CN1	Turbo LED	J1 pins 7 & 8
Serial port 2	CN2	Green PC connector	J1 pins 10 & 11
Serial port 1	CN3	Green PC LED	J1 pins 13 & 14
USB connector 1	CN4	Speaker	J1 pins 15 - 18
USB connector 2	CN5	IDE interface LED	J1 pins 20 & 21
PS/2 mouse port	CN6	Remote control power	J1 pins 23 & 24
Floppy drive interface	CN7	Reset switch	J1 pins 27 & 28
IDE interface 2	CN8	32-bit PCI slots	PC1 – PC4
IDE interface 1	CN9	Remote control power switch	RPW
Chassis fan power	FAN	Cache slot	SL1
IR connector	IR

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Password disabled	CPW	Open
	Password enabled	CPW	Closed
»	Power supply type select AT	VR3	Pins 1 & 2, 3 & 4 closed
	Power supply type select ATX	VR3	Open

DIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 1M x 64	(1) 2M x 64
24MB	(1) 3M x 64	None
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
32MB	(1) 1M x 64	(1) 3M x 64
40MB	(1) 1M x 64	(1) 4M x 64
40MB	(1) 2M x 64	(1) 3M x 64
48MB	(1) 2M x 64	(1) 4M x 64
48MB	(1) 3M x 64	(1) 3M x 64
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Size	Bank 0	SL1	TAG
256KB (A)	(2) 32K x 32	Not installed	(1) 16K/32K x 8
256KB (B)	None	256KB module installed	None
512KB (A)	(2) 64K x 32	Not installed	(1) 16K/32K x 8
512KB (B)	(2) 32K x 32	256KB module installed	(1) 16K/32K x 8
512KB (C)	None	512KB module installed	None

CACHE JUMPER CONFIGURATION
Size	SRAM1
256KB (A)	Pins 1 & 2 closed
256KB (B)	Pins 1 & 2 closed
512KB (A)	Pins 2 & 3 closed
512KB (B)	Pins 2 & 3 closed
512KB (C)	Pins 2 & 3 closed

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2
120MHz	50MHz	2x	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
133MHz	55MHz	2x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
150MHz	60MHz	2x	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
166MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
150MHz (M2)	60MHz	2.5x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
166MHz (M2)	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3
180MHz (M2)	60MHz	3x	1 & 2	2 & 3	2 & 3	1 & 2	2 & 3
200MHz (M2)	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2
120MHz	50MHz	2x	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2
133MHz	55MHz	2x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
150MHz	60MHz	2x	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
166MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
150MHz (M2)	60MHz	2.5x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
166MHz (M2)	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3
180MHz (M2)	60MHz	3x	1 & 2	2 & 3	2 & 3	1 & 2	2 & 3
200MHz (M2)	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2
75MHz	50MHz	1.5x	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
90MHz	60MHz	1.5x	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
120MHz	60MHz	1.5x	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
133MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
150MHz	60MHz	1.75x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
166MHz	66MHz	1.75x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3
200MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	CLK1	CLK2	CLK3	FREQ1	FREQ2
75MHz	50MHz	1.5x	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
90MHz	60MHz	1.5x	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
120MHz	60MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
150MHz	60MHz	2.5x	1 & 2	2 & 3	2 & 3	2 & 3	2 & 3
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)
Voltage	VR1	VR2
3.3v	Pins 3 & 4 closed	Pins 1 & 2, 3 & 4 closed
3.4v – 3.6v	Pins 1 & 2 closed	Pins 1 & 2, 3 & 4 closed

CPU VOLTAGE SELECTION (CYRIX, DUAL)
Voltage	V core	VR1	VR2
3.3v	2.8v	9 & 10	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (IBM, DUAL)
Voltage	V core	VR1	VR2
3.3v	2.8v	9 & 10	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (AMD, DUAL)
Voltage	V core	VR1	VR2
3.3v	2.5v	9 & 10	5 & 6, 7 & 8
3.3v	2.8v	7 & 8	5 & 6, 7 & 8
3.3v	2.9v	5 & 6	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (INTEL, DUAL)
Voltage	V core	VR1	VR2
3.3v	2.8v	7 & 8	5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

FLASH BIOS SELECTION
Setting	EP1	EP2
AMTEL 29C010A	Pins 1 & 2 closed	Pins 2 & 3 closed
Intel 28F001	Pins 1 & 2 closed	Pins 1 & 2 closed
MXIC 28F1000	Pins 1 & 2 closed	Pins 2 & 3 closed
MXIC 28F2000	Pins 2 & 3 closed	Pins 2 & 3 closed
SST 29EE010	Pins 1 & 2 closed	Pins 2 & 3 closed
SST 29EE020	Pins 2 & 3 closed	Pins 2 & 3 closed
