ELITEGROUP COMPUTER SYSTEMS, INC.

P5VX-BE (VER. 1.1)

Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), CD-ROM connector, floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector, audio connector

NPU Options

None

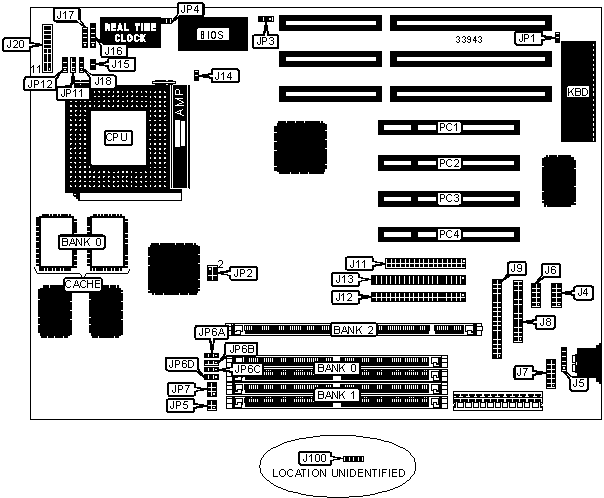

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

J4

IR connector

J16

PS/2 mouse interface

J5

IR connector (IBM)

J17

Serial port 1

J6

Chassis fan power

J18

USB connector

J7

Turbo LED

J20 pins 2 & 3

Parallel port

J8

Green PC connector

J20 pins 4 & 5

Audio connector (optional)

J9

Reset switch

J20 pins 9 & 10

Floppy drive interface

J11

Power LED & keylock

J20 pins 11 - 15

IDE interface 2

J12

Speaker

J20 pins 17 - 20

IDE interface 1

J13

CD ROM connector

J100

Green PC LED

J14

32-bit VESA local bus slots

PC1 - PC4

IDE interface LED

J15



USER CONFIGURABLE SETTINGS

Function

Label

Position



Password disabled

JP1

Open



Password enabled

JP1

Closed

»

Factory configured - do not alter

JP3

Unidentified

»

CMOS memory normal operation

JP4

Open



CMOS memory clear

JP4

Closed

DIMM/DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

4MB

(2) 512K x 36

None

None

8MB

(2) 1M x 36

None

None

8MB

(2) 512K x 36

(2) 512K x 36

None

8MB

None

None

(1) 1M x 64

12MB

(2) 1M x 36

(2) 512K x 36

None

16MB

(2) 2M x 36

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

16MB

None

None

(1) 2M x 64

20MB

(2) 2M x 36

(2) 512K x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

32MB

(2) 4M x 36

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

32MB

None

None

(1) 4M x 64

36MB

(2) 4M x 36

(2) 512K x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

64MB

(2) 8M x 36

None

None

64MB

(2) 4M x 36

(2) 4M x 36

None

DIMM/DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

68MB

(2) 8M x 36

(2) 512K x 36

None

72MB

(2) 8M x 36

(2) 1M x 36

None

80MB

(2) 8M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 4M x 36

None

128MB

(2) 8M x 36

(2) 8M x 36

None

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Size

Bank 0

256KB

(2) 32K x 32

512KB

(2) 64K x 32

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP2

JP11

JP12

120MHz

50MHz

2x

1 & 2, 3 & 4, 5 & 6

2 & 3

1 & 2

133MHz

55MHz

2x

1 & 2, 3 & 4

2 & 3

1 & 2

150MHz

60MHz

2x

3 & 4, 5 & 6

2 & 3

1 & 2

166MHz

66MHz

2x

1 & 2, 5 & 6

2 & 3

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP2

JP11

JP12

75MHz

50MHz

1.5x

1 & 2, 3 & 4, 5 & 6

1 & 2

1 & 2

90MHz

60MHz

1.5x

3 & 4, 5 & 6

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2, 5 & 6

1 & 2

1 & 2

120MHz

60MHz

1.5x

3 & 4, 5 & 6

1 & 2

1 & 2

133MHz

66MHz

1.5x

1 & 2, 5 & 6

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP2

JP11

JP12

75MHz

50MHz

1.5x

1 & 2, 3 & 4, 5 & 6

1 & 2

1 & 2

90MHz

60MHz

1.5x

3 & 4, 5 & 6

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2, 5 & 6

1 & 2

1 & 2

120MHz

60MHz

2x

3 & 4, 5 & 6

2 & 3

1 & 2

133MHz

66MHz

2x

1 & 2, 5 & 6

2 & 3

1 & 2

150MHz

60MHz

2.5x

3 & 4, 5 & 6

2 & 3

2 & 3

166MHz

66MHz

2.5x

1 & 2, 5 & 6

2 & 3

2 & 3

180MHz

60MHz

3x

1 & 2, 5 & 6

2 & 3

2 & 3

200MHz

66MHz

3x

1 & 2, 5 & 6

1 & 2

2 & 3

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP5

JP6A

JP6B

JP6C

JP6D

3.3v

1 & 2

2 & 3

2 & 3

2 & 3

2 & 3

3.525v

3 & 4

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

JP5

JP6A

JP6B

JP6C

JP6D

JP7

3.3v

2.5v

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

3.3v

2.8v

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

3 & 4

3.3v

2.9v

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

5 & 6

3.525v

2.5v

3 & 4

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

3.525v

2.8v

3 & 4

1 & 2

1 & 2

1 & 2

1 & 2

3 & 4

3.525v

2.9v

3 & 4

1 & 2

1 & 2

1 & 2

1 & 2

5 & 6

Note: Pins designated should be in the closed position.
