FREE COMPUTER TECHNOLOGY, INC.

P6F70

Processor

Pentium Pro

Processor Speed

150/166/180/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

1GB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector

NPU Options

None

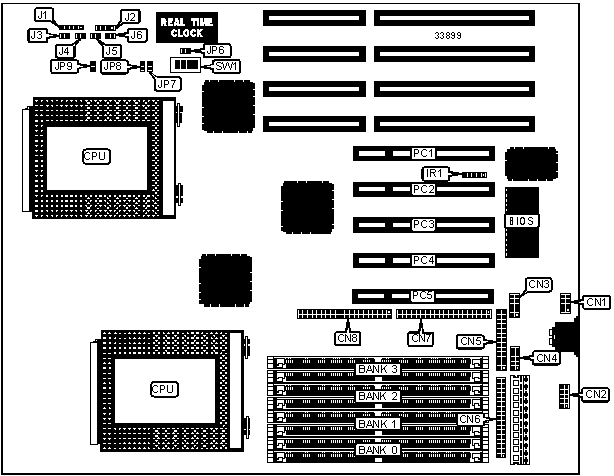

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

CN1

Power LED & keylock

J1

USB connector

CN2

Speaker

J2

Serial port 2

CN3

Green PC connector

J3

Serial port 1

CN4

Turbo LED

J4

Parallel port

CN5

Reset switch

J5

Floppy drive interface

CN6

IDE interface LED

J6

IDE interface 1

CN7

Overheat buzzer

JP9

IDE interface 2

CN8

32-bit PCI slots

PC1 - PC5

IR connector

IR1



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP6

Open



CMOS memory clear

JP6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(2) 1M x 36

None

None

None

16MB

(2) 2M x 36

None

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 1M x 36

(2) 2M x 36

None

None

32MB

(2) 4M x 36

None

None

None

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 4M x 36

(2) 1M x 36

None

None

40MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

None

40MB

(2) 1M x 36

(2) 4M x 36

None

None

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

56MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

56MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

None

None

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

72MB

(2) 8M x 36

(2) 1M x 36

None

None

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

72MB

(2) 1M x 36

(2) 8M x 36

None

None

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

None

80MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

80MB

(2) 2M x 36

(2) 8M x 36

None

None

88MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 8M x 36

None

None

104MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

112MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

128MB

(2) 16M x 36

None

None

None

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

None

128MB

(2) 8M x 36

(2) 8M x 36

None

None

136MB

(2) 16M x 36

(2) 1M x 36

None

None

136MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

None

136MB

(2) 1M x 36

(2) 16M x 36

None

None

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

None

144MB

(2) 16M x 36

(2) 2M x 36

None

None

144MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

None

152MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

160MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

None

160MB

(2) 16M x 36

(2) 4M x 36

None

None

160MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

160MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

None

176MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

None

192MB

(2) 16M x 36

(2) 8M x 36

None

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

200MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

208MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

224MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

224MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 32M x 36

None

None

None

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

None

256MB

(2) 16M x 36

(2) 16M x 36

None

None

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

264MB

(2) 32M x 36

(2) 1M x 36

None

None

264MB

(2) 1M x 36

(2) 16M x 36

(2) 16M x 36

None

264MB

(2) 1M x 36

(2) 32M x 36

None

None

272MB

(2) 32M x 36

(2) 1M x 36

(2) 1M x 36

None

272MB

(2) 32M x 36

(2) 2M x 36

None

None

280MB

(2) 32M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

288MB

(2) 32M x 36

(2) 2M x 36

(2) 2M x 36

None

288MB

(2) 32M x 36

(2) 4M x 36

None

None

304MB

(2) 32M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

320MB

(2) 32M x 36

(2) 4M x 36

(2) 4M x 36

None

320MB

(2) 32M x 36

(2) 8M x 36

None

None

320MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 8M x 36

(2) 8M x 36

None

384MB

(2) 32M x 36

(2) 16M x 36

None

None

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

None

384MB

(2) 16M x 36

(2) 32M x 36

None

None

392MB

(2) 1M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

448MB

(2) 32M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

512MB

(2) 32M x 36

(2) 16M x 36

(2) 16M x 36

None

512MB

(2) 32M x 36

(2) 32M x 36

None

None

512MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

520MB

(2) 1M x 36

(2) 32M x 36

(2) 32M x 36

None

640MB

(2) 32M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

768MB

(2) 32M x 36

(2) 32M x 36

(2) 32M x 36

None

776MB

(2) 1M x 36

(2) 32M x 36

(2) 32M x 36

(2) 32M x 36

1GB

(2) 32M x 36

(2) 32M x 36

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

150MHz

60MHz

2.5x

Off

On

On

Off

166MHz

66MHz

2.5x

Off

On

Off

On

180MHz

60MHz

3x

On

Off

On

Off

200MHz

66MHz

3x

On

Off

Off

On

TEMPERATURE SENSOR SELECTION

Setting

JP7

JP8

Overheat disabled

Open

Open

Temp > 50 0 C CPU clock will stop

Open

Closed

Temp > 50 0 C system will enter suspend mode

Closed

Open
