ELITEGROUP COMPUTER SYSTEMS, INC.
P5HX-B
Processor |
CX M1/Pentium |
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
Chip Set |
Intel |
Video Chip Set |
None |
Maximum Onboard Memory |
256MB (EDO supported) |
Maximum Video Memory |
None |
Cache |
256/512KB |
BIOS |
Award |
Dimensions |
330mm x 218mm |
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, USB connector |
NPU Options |
None |

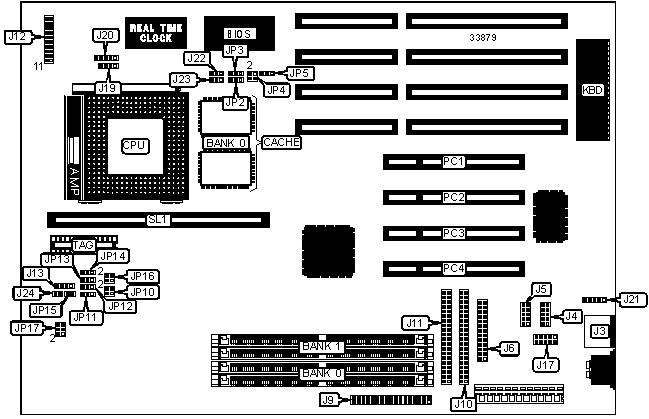

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
PS/2 mouse port |
J3 |
Speaker |
J12 pins 17 - 20 |
Serial port 1 |
J4 |
IDE interface LED |
J13 |
Serial port 2 |
J5 |
USB connector |
J17 |
Parallel port |
J6 |
IR connector (IBM) |
J19 |
Floppy drive interface |
J9 |
IR connector (Intel) |
J20 |
IDE interface 1 |
J10 |
PS/2 mouse interface |
J21 |
IDE interface 2 |
J11 |
Chassis fan power |
J22 |
Turbo LED |
J12 pins 2 & 3 |
Chassis fan power |
J23 |
Green PC connector |
J12 pins 4 & 5 |
Green PC LED |
J24 |
Turbo switch |
J12 pins 6 & 7 |
32-bit PCI slots |
PC1 - PC4 |
Reset switch |
J12 pins 9 & 10 |
Cache slot |
SL1 |
Power LED & keylock |
J12 pins 11 - 15 |
USER CONFIGURABLE SETTINGS | |||
Function |
Label |
Position | |
» |
CMOS memory normal operation |
JP5 |
Pins 2 & 3 closed |
CMOS memory clear |
JP5 |
Pins 1 & 2 closed |
DRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
136MB |
(2) 1M x 36 |
(2) 16M x 36 |
144MB |
(2) 2M x 36 |
(2) 16M x 36 |
160MB |
(2) 4M x 36 |
(2) 16M x 36 |
192MB |
(2) 8M x 36 |
(2) 16M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
CACHE CONFIGURATION | |||
Size |
Bank 0 |
SL1 |
TAG |
256KB (A) |
(2) 32K x 32 |
None |
Unidentified |
256KB (B) |
None |
256KB module installed |
Unidentified |
512KB (A) |
(2) 32K x 32 |
256KB module installed |
Unidentified |
512KB (B) |
(2) 64K x 32 |
None |
Unidentified |
CACHE JUMPER CONFIGURATION | ||
Size |
JP15 |
JP16 |
None |
Open |
Open |
256KB (A) |
Closed |
Pins 1 & 2 closed |
256KB (B) |
Open |
Pins 1 & 2 closed |
512KB (A) |
Closed |
Pins 3 & 4 closed |
512KB (B) |
Closed |
Pins 3 & 4 closed |
CPU SPEED SELECTION (CYRIX) | |||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
110MHz |
55MHz |
2x |
Open |
2 & 3 |
Open |
120MHz |
60MHz |
2x |
Open |
2 & 3 |
3 & 4 |
133MHz |
66MHz |
2x |
Open |
2 & 3 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU SPEED SELECTION (INTEL) | |||||
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
1 & 2, 3 & 4 |
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
3 & 4 |
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
1 & 2 |
120MHz |
60MHz |
2x |
1 & 2 |
2 & 3 |
3 & 4 |
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
1 & 2 |
150MHz |
60MHz |
2.5x |
2 & 3 |
2 & 3 |
3 & 4 |
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
1 & 2 |
180MHz |
60MHz |
3x |
2 & 3 |
1 & 2 |
3 & 4 |
200MHz |
66MHz |
3x |
2 & 3 |
1 & 2 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU VOLTAGE SELECTION (SINGLE VOLTAGE) | ||||||
Voltage |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 | |
» |
3.3v |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
3.52v |
3 & 4 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 | |
Note: Pins designated should be in the closed position. |
CPU VOLTAGE SELECTION (DUAL VOLTAGE) | |||||||
Voltage |
Core voltage |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
JP17 |
3.3v |
2.51 |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
3.3v |
2.73 |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
3 & 4 |
3.3v |
2.91 |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
5 & 6 |
3.52v |
2.51 |
3 & 4 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
3.52v |
2.73 |
3 & 4 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
3 & 4 |
3.52v |
2.91 |
3 & 4 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
5 & 6 |
Note: Pins designated should be in the closed position. |
