Processor	80386SX
Processor Speed	16/20/25/33MHz
Chip Set	PC Chips
Video Chip Set	None
Maximum Onboard Memory	16MB
Maximum Video Memory	None
Cache	None
BIOS	Unidentified
Dimensions	220mm x 170mm
I/O Options	None
NPU Options	80387SX

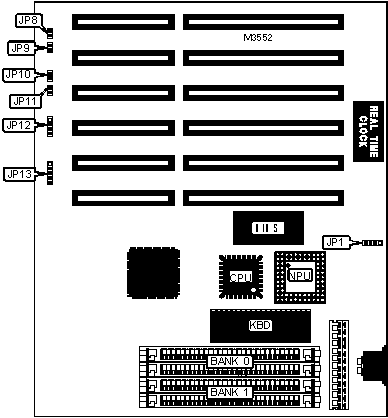

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP1	Turbo switch	JP11
Reset switch	JP9	Speaker	JP12
Turbo LED	JP10	Power LED & keylock	JP13

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Monitor type select monochrome	JP8	Open
	Monitor type select color	JP8	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(2) 256K x 9	None
1MB	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	None
4MB	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	None
16MB	(2) 4M x 9	(2) 4M x 9
