GIGA-BYTE TECHNOLOGY CO., LTD.
GA-586AVS
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
128MB |
|
Cache |
256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VGA feature connector, VGA interface, cache slot |
|
NPU Options |
None |
|

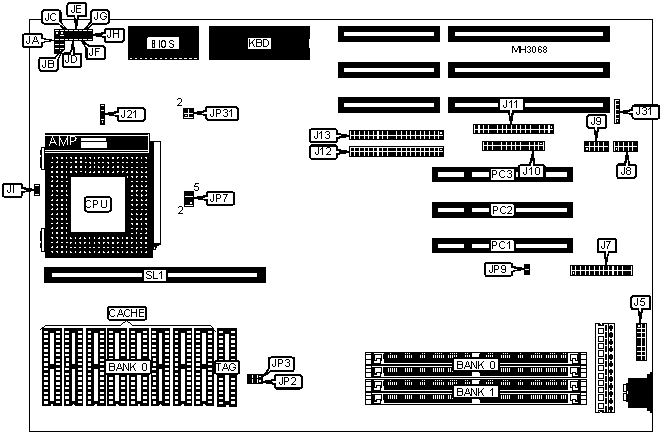

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
JA |
Serial port 1 |
J8 |
|
Speaker |
JB |
Serial port 2 |
J9 |
|
Turbo LED |
JC |
Parallel port |
J10 |
|
Turbo switch |
JD |
Floppy drive interface |
J11 |
|
Reset switch |
JE |
IDE interface 1 |
J12 |
|
Green PC LED |
JF |
IDE interface 2 |
J13 |
|
Green PC connector |
JG |
External battery |
J21 |
|
IDE interface LED |
JH |
PS/2 mouse interface |
J31 |
|
Chassis fan power |
JI |
32-bit PCI slots |
PC1 - PC3 |
|
VGA interface |
J5 |
Cache slot |
SL1 |
|
VGA feature connector |
J7 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
On board VGA IRQ disabled |
JP9 |
Open |
|
On board VGA IRQ enabled |
JP9 |
Closed | |
|
» |
CMOS memory normal operation |
J21 |
pins 2 & 3 closed |
|
CMOS memory clear |
J21 |
Open | |
|
Battery type select external |
J21 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
(2) 512K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
|
DRAM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
TAG |
SL1 |
|
256KB (A) |
(8) 32K x 8 |
(1) 8K or (1) 32K x 8 |
Not installed |
|
256KB (B) |
NONE |
NONE |
Installed |
|
512KB |
(8) 64K x 8 |
(1) 16K or (1) 32K x 8 |
Not installed |
|
1MB |
(8) 128K x 8 |
(1) 32K x 8 |
Not installed |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP2 |
JP3 |
|
256KB (A) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB (B) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
512KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
1MB |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
CPU SPEED CONFIGURATION | ||
|
Speed |
JP7 |
JP31 |
|
75MHz |
pins 1 & 2 closed |
Open |
|
90MHz |
pins 3 & 4 closed |
Open |
|
100MHz |
pins 1 & 2, 5 & 6 closed |
Open |
|
120MHz |
pins 3 & 4 closed |
pins 1 & 2 closed |
|
133MHz |
pins 1 & 2, 5 & 6 closed |
pins 1 & 2 closed |
|
150MHz |
pins 3 & 4 closed |
pins 1 & 2, 3 & 4 closed |
|
166MHz |
pins 1 & 2, 5 & 6 closed |
pins 1 & 2, 3 & 4 closed |
|
180MHz |
pins 3 & 4 closed |
pins 3 & 4 closed |
|
200MHz |
pins 1 & 2, 5 & 6 closed |
pins 3 & 4 closed |
