Processor	80286
Processor Speed	10MHz
Chip Set	Unidentified
Max. Onboard DRAM	1MB
Cache	None
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80287

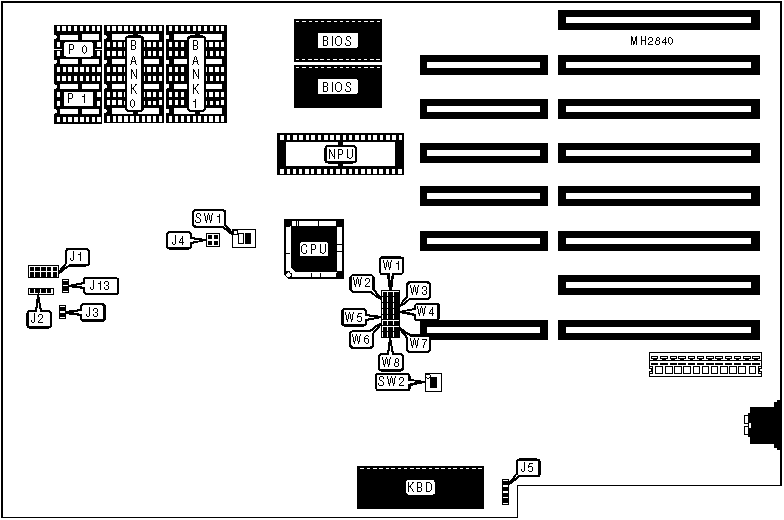

CONNECTIONS
Purpose	Location	Purpose	Location
Front panel connector	J1	Reset switch	J3
Speaker	J2	External battery	J5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	J4	pins 3 & 4 closed
»	Factory configured - do not alter	J13	pins 1 & 2 closed
»	Monitor type select monochrome	SW1	On
	Monitor type select color	SW2	Off
»	Factory configured - do not alter	W1	pins 2 & 3 closed
»	Factory configured - do not alter	W2	pins 2 & 3 closed
»	Factory configured - do not alter	W3	pins 2 & 3 closed
»	Factory configured - do not alter	W4	pins 2 & 3 closed
»	Factory configured - do not alter	W5	pins 2 & 3 closed
»	Factory configured - do not alter	W6	pins 2 & 3 closed
»	Factory configured - do not alter	W7	pins 2 & 3 closed
»	Factory configured - do not alter	W8	pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Parity 0	Bank 1	Parity 1
512KB	(4) 44256	(2) 41256	NONE	NONE
1MB	(4) 44256	(2) 41256	(4) 44256	(2) 41256

DRAM CONFIGURATION
Size	SW1/1	SW1/2
512KB	On	Off
1MB	Off	Off
