HYUNDAI ELECTRONICS, INC.
SUPER-16TE
Processor |
8088 |
Processor Speed |
10MHz |
Chip Set |
None |
Max. Onboard DRAM |
640KB |
Cache |
None |
BIOS |
Hyundai |
Dimensions |
355mm x 304mm |
I/O Options |
Parallel port, serial port, floppy drive interface |
NPU Options |
8087 |

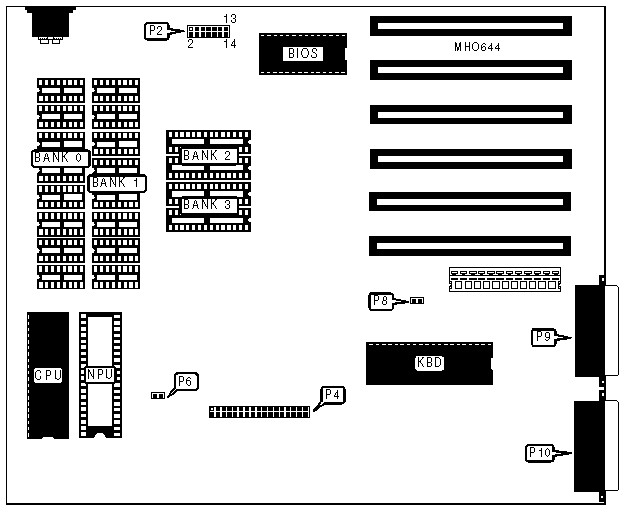

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
Floppy drive interface |
P4 |
Parallel port |
P9 |
Power LED |
P6 |
Serial port |
P10 |
Speaker |
P8 |
USER CONFIGURABLE SETTINGS | |||
Function |
Jumper |
Position | |
» |
NPU disabled |
P2 pins 1 & 2 |
Closed |
NPU enabled |
P2 pins 1 & 2 |
Open |
DRAM CONFIGURATION | ||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
512KB |
(8) 41256 |
(8) 41256 |
NONE |
NONE |
640KB |
(8) 41256 |
(8) 41256 |
(2) 4464 |
(2) 4464 |
DRAM JUMPER CONFIGURATION | |
Size |
P2 |
512KB |
pins 3 & 4 closed |
640KB |
pins 5 & 6 closed |
MONITOR CONFIGURATION | |
Type |
P2 |
Color |
pins 7 & 8 closed |
Monochrome |
pins 9 & 10 closed |
BIOS CONFIGURATION | |
Size |
P2 |
27256 |
pins 11 & 12 closed |
27128 |
pins 13 & 14 closed |
