Processor	80286
Processor Speed	16MHz
Chip Set	Suntac
Max. Onboard DRAM	8MB
Cache	None
BIOS	Award/Phoenix
Dimensions	330mm x 218mm
I/O Options	Parallel port, serial ports (2), floppy interface, IDE interface
NPU Options	80287

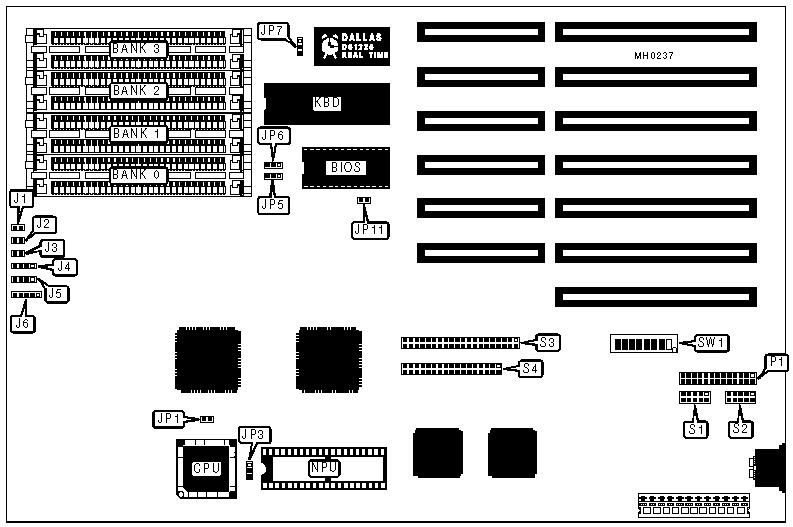

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J1	Parallel port	P1
Turbo LED	J2	Serial port 1	S1
Turbo switch	J3	Serial port 2	S2
Hard drive LED	J4	IDE interface	S3
Speaker	J5	Floppy interface	S4
Power LED & keylock	J6

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	Factory configured - do not alter	JP1	Closed
»	NPU mode select synchronous with CPU	JP3	pins 2 & 3 closed
	NPU mode select asynchronous with CPU	JP3	pins 1 & 2 closed
»	BIOS type select Award	JP7	pins 2 & 3 closed
	BIOS type select Phoenix	JP7	pins 1 & 2 closed
»	Factory configured - do not alter	JP11	Open
»	Monitor type select color	SW1/1	On
	Monitor type select monochrome	SW1/1	Off
»	Floppy drive enabled	SW1/2	On
	Floppy drive disabled	SW1/2	Off
»	Floppy drive address select primary	SW1/3	Off
	Floppy drive address select secondary	SW1/3	On
»	COM1 (S1) enabled	SW1/6	On
	COM1 (S1) disabled	SW1/6	Off
»	COM2 (S2) enabled	SW1/7	On
	COM2 (S2) disabled	SW1/7	Off
»	LPT1 (P1) enabled	SW1/8	On
	LPT1 (P1) disabled	SW1/8	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE	NONE	NONE
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9

ON BOARD IDE CONFIGURATION
Setting	SW1/4	SW1/5
Enabled	Off	On
Disabled	On	Off

BIOS CONFIGURATION
Size	JP5	JP6
27256	pins 1 & 2 closed	pins 1 & 2 closed
27512	pins 2 & 3 closed	pins 2 & 3 closed
