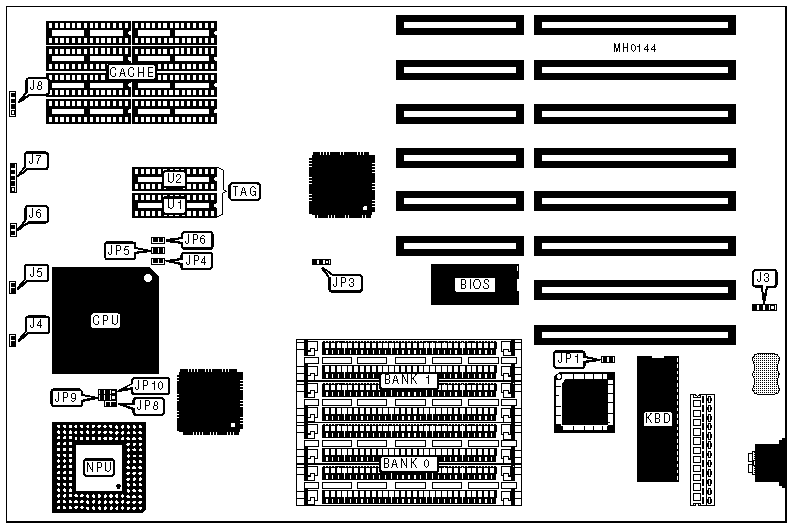

FUJIKAMA USA, INC.

486AW 33/50

Processor

80486DX

Processor Speed

33/50MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

64/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

4167

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J3

Reset switch

J6

Turbo switch

J4

Power LED & Keylock

J7

Turbo LED

J5

Speaker

J8

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select monochrome

JP1

Open



Monitor type select color

JP1

Closed

»

CPU speed select 33MHz

JP3

pins 2 & 3 closed



CPU speed select 50MHz

JP3

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 1M x 9

(4) 256K x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

17MB

(4) 4M x 9

(4) 256K x 9

20MB

(4) 4M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Bank 0

TAG (U1)

TAG (U2)

64KB

(8) 8K x 8

(1) 8K x 8

NONE

256KB

(8) 32K x 8

(1) 8K x 8

(1) 8K x 8

256KB

(8) 32K x 8

(1) 32K x 8

NONE

CACHE JUMPER CONFIGURATION

Size

JP4

JP5

JP6

64KB

Open

Open

Open

256KB

Closed

Closed

Closed

CPU TYPE CONFIGURATION

Type

JP8

JP9

JP10

80486SX

Open

pins 2 & 3 closed

open

80487SX

Closed

pins 1 & 2 closed

pins 1 & 2 closed

80486DX

Closed

pins 1 & 2 closed

pins 2 & 3 closed
