CHAINTECH COMPUTER COMPANY, LTD.

CT-6BTS

Device Type

Mainboard

Processor

Pentium II

Processor Speed

233/266/300/333/350/366/400/450MHz

Chip Set

Intel 440BX

Video Chip Set

None

Maximum Onboard Memory

512MB (SDRAM supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium II CPU)

BIOS

Award

Dimensions

305mm x 230mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide Ultra SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, SB-link connector, wake on LAN connector

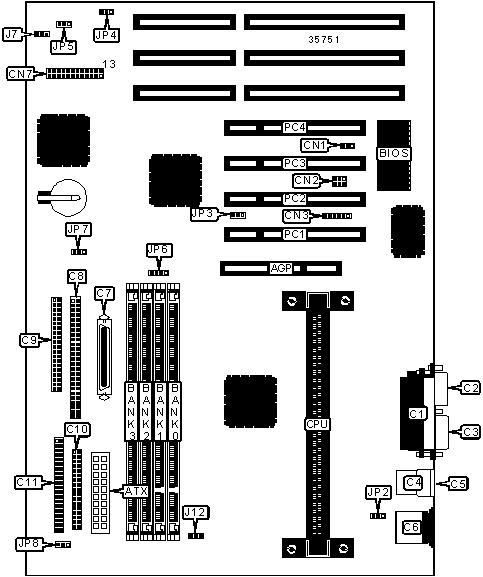

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

SB-link connector

CN2

ATX power connector

ATX

IR connector

CN3

Parallel port

C1

Power LED & keylock

CN7/pins 1 - 5

Serial port 2

C2

Speaker

CN7/pins 7 - 10

Serial port 1

C3

Soft off power supply

CN7/pins 11 & 12

USB connector 1

C4

Turbo LED

CN7/pins 13 & 14

USB connector 2

C5

Green PC connector

CN7/pins 16 & 17

PS/2 mouse port

C6

Green PC LED

CN7/pins 18 & 19

Ultra Wide SCSI interface

C7

Reset switch

CN7/pins 21 & 22

SCSI interface

C8

IDE interface LED

CN7/pins 23 & 24

IDE interface 1

C9

Chassis fan power

J7

Floppy drive interface

C10

CPU fan power

J12

IDE interface 2

C11

Chassis intrusion connector

JP8

Wake on LAN connector

CN1

32-bit PCI slots

PC1 - PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Keyboard power on disabled

JP2

Pins 1 & 2 closed



Keyboard power on enabled

JP2

Pins 2 & 3 closed

»

On board SCSI enabled

JP3

Pins 1 & 2 closed



On board SCSI disabled

JP3

Pins 2 & 3 closed

»

Power failure recovery disabled

JP4

Pins 1 & 2 closed



Power failure recovery enabled

JP4

Pins 2 & 3 closed

»

CMOS memory normal operation

JP5

Pins 1 & 2 closed



CMOS memory clear

JP5

Pins 2 & 3 closed

»

Internal/external SCSI select normal

JP7

Pins 1 & 2 closed



Internal/external SCSI select install internal/external at same time

JP7

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

(2) 1M x 36

None

None

None

16MB

(2) 2M x 36

None

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

None

24MB

(2) 2M x 36

(2) 1M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

None

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

32MB

(2) 4M x 36

None

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

40MB

(2) 4M x 36

(2) 1M x 36

None

None

48MB

(2) 4M x 36

(2) 2M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

None

None

64MB

(2) 4M x 36

(2) 4M x 36

None

None

72MB

(2) 8M x 36

(2) 1M x 36

None

None

80MB

(2) 8M x 36

(2) 2M x 36

None

None

96MB

(2) 8M x 36

(2) 4M x 36

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

128MB

(2) 16M x 36

None

None

None

128MB

(2) 8M x 36

(2) 8M x 36

None

None

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

136MB

(2) 16M x 36

(2) 1M x 36

None

None

144MB

(2) 16M x 36

(2) 2M x 36

None

None

152MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

160MB

(2) 16M x 36

(2) 4M x 36

None

None

176MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

192MB

(2) 16M x 36

(2) 8M x 36

None

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

224MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

256MB

(2) 16M x 36

(2) 16M x 36

None

None

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

272MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

320MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

320MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

None

512MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

Note: Board accepts SDRAM memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION

CPU speed

JP6

»

Determined by CPU

Pins 1 & 2 closed



66MHz

Pins 2 & 3 closed



100MHz

Pins 3 & 4 closed
