Device Type	Mainboard
Processor	Pentium II
Processor Speed	233/266/300/333MHz
Chip Set	Intel 440LX
Maximum Onboard Memory	1GB (EDO and SDRAM supported)
Cache	(256/512KB located on the Pentium II CPU)
BIOS	Award
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), USB ports (2), SCSI connector, SCSI UltraWide connector, AGP slot, RAID slot

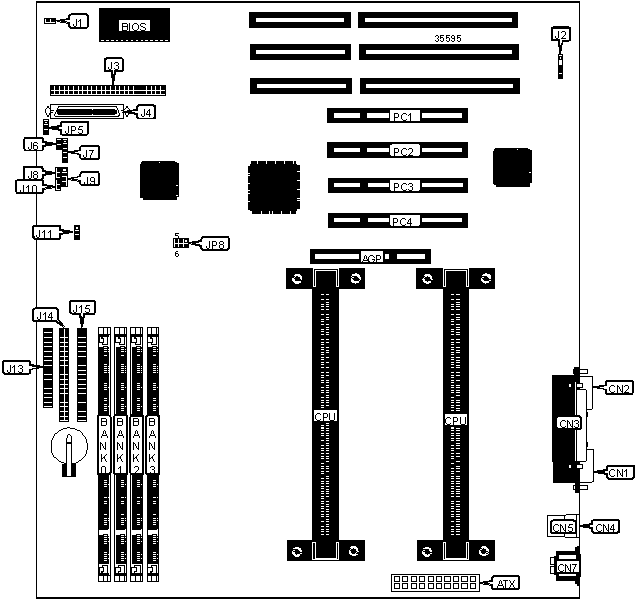

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	IDE interface LED	J6
AGP slot	AGP	Power LED & keylock	J7
Serial port 1	CN1	Power switch	J8
Serial port 2	CN2	Speaker	J9
Parallel port	CN3	Reset switch	J12
USB connector 1	CN4	Floppy drive interface	J13
USB connector 2	CN5	IDE interface 1	J14
PS/2 mouse interface	CN7	IDE interface 2	J15
IR connector	J2	Wake on LAN connector	JP5
SCSI connector	J3	32-bit PCI slots	PC1 - PC4
SCSI UltraWide connector	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	System power on after power failure enabled	J1	Closed
	System power on after power failure disabled	J1	Open
»	CMOS memory normal operation	J11	Pins 2 & 3 closed
	CMOS memory clear	J11	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(1) 1MB x 64	None	None	None
16MB	(1) 1MB x 64	(1) 1MB x 64	None	None
16MB	(1) 2MB x 64	None	None	None
24MB	(1) 1MB x 64	(1) 1MB x 64	(1) 1MB x 64	None
24MB	(1) 2MB x 64	(1) 1MB x 64	None	None
32MB	(1) 1MB x 64	(1) 1MB x 64	(1) 1MB x 64	(1) 1MB x 64
32MB	(1) 2MB x 64	(1) 2MB x 64	None	None
32MB	(1) 4MB x 64	None	None	None
32MB	(1) 2MB x 64	(1) 1MB x 64	(1) 1MB x 64	None
40MB	(1) 2MB x 64	(1) 2MB x 64	(1) 1MB x 64	None
48MB	(1) 2MB x 64	(1) 2MB x 64	(1) 2MB x 64	None
48MB	(1) 2MB x 64	(1) 2MB x 64	(1) 1MB x 64	(1) 1MB x 64
56MB	(1) 4MB x 64	(1) 2MB x 64	(1) 1MB x 64	None
64MB	(1) 2MB x 64	(1) 2MB x 64	(1) 2MB x 64	(1) 2MB x 64
64MB	(1) 4MB x 64	(1) 4MB x 64	None	None
64MB	(1) 8MB x 64	None	None	None
64MB	(1) 4MB x 64	(1) 2MB x 64	(1) 1MB x 64	(1) 1MB x 64
88MB	(1) 4MB x 64	(1) 4MB x 64	(1) 2MB x 64	(1) 1MB x 64
96MB	(1) 4MB x 64	(1) 4MB x 64	(1) 4MB x 64	None

DRAM CONFIGURATION (CONT.)
Size	Bank 0	Bank 1	Bank 2	Bank 3
120MB	(1) 8MB x 64	(1) 4MB x 64	(1) 2MB x 64	(1) 1MB x 64
128MB	(1) 4MB x 64	(1) 4MB x 64	(1) 4MB x 64	(1) 4MB x 64
128MB	(1) 8MB x 64	(1) 8MB x 64	None	None
128MB	(1) 16MB x 64	None	None	None
136MB	(1) 8MB x 64	(1) 4MB x 64	(1) 4MB x 64	(1) 1MB x 64
192MB	(1) 8MB x 64	(1) 8MB x 64	(1) 8MB x 64	None
240MB	(1) 16MB x 64	(1) 8MB x 64	(1) 4MB x 64	(1) 2MB x 64
256MB	(1) 8MB x 64	(1) 8MB x 64	(1) 8MB x 64	(1) 8MB x 64
256MB	(1) 16MB x 64	(1) 16MB x 64	None	None
256MB	(1) 32MB x 64	None	None	None
384MB	(1) 16MB x 64	(1) 16MB x 64	(1) 16MB x 64	None
480MB	(1) 32MB x 64	(1) 16MB x 64	(1) 8MB x 64	(1) 4MB x 64
512MB	(1) 16MB x 64	(1) 16MB x 64	(1) 16MB x 64	(1) 16MB x 64
512MB	(1) 32MB x 64	(1) 32MB x 64	None	None
768MB	(1) 32MB x 64	(1) 32MB x 64	(1) 32MB x 64	None
1024MB	(1) 32MB x 64	(1) 32MB x 64	(1) 32MB x 64	(1) 32MB x 64
Note: Board accepts EDO & SDRAM memory. Maximum EDO memory is 1GB. Maximum SDRAM is 512MB

CACHE CONFIGURATION

The 256/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
Speed	Clock speed	Multiplier	JP8/pins 1 & 2	JP8/pins 3 & 4	JP8/pins 5 & 6
233MHz	66MHz	3.5x	Open	Open	Closed
266MHz	66MHz	4x	Closed	Closed	Open
300MHz	66MHz	4.5x	Open	Closed	Open
333MHz	66MHz	5x	Closed	Open	Open
