DIAMOND FLOWER, INC.

G586IPV/E (REV. B+)

Device Type

Mainboard

Processor

CX 6X86/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel 430VX

Maximum Onboard Memory

128MB (EDO supported)

Cache

256/512KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2)

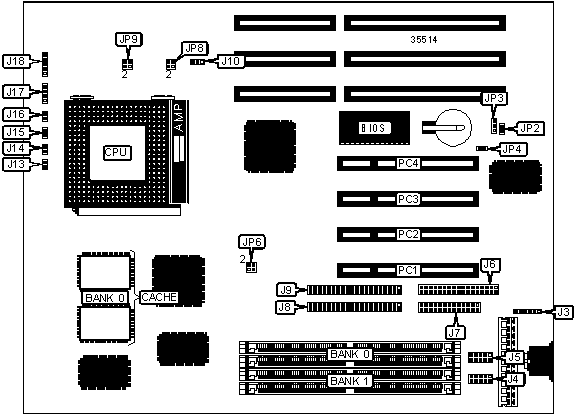

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

J3

IDE interface LED

J13

Serial port 1

J4

Green PC LED

J14

Serial port 2

J5

Green PC connector

J15

Floppy drive interface

J6

Reset switch

J16

Parallel port

J7

Speaker

J17

IDE interface 1

J8

Power LED & keylock

J18

IDE interface 2

J9

32-bit PCI slots

PC1 – PC4

Chassis fan power

J10



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP2

Open



CMOS memory clear

JP2

Closed

»

Monitor type select color

JP3

Pins 1 & 2 closed



Monitor type select monochrome

JP3

Pins 2 & 3 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Size

Bank 0

256KB

(2) 16K x 32

512KB

(2) 32K x 32

CPU SPEED SELECTION (CX 6X86)

CPU speed

Clock speed

Multiplier

JP4

JP6

JP8

120MHz

50MHz

2x

Open

1 & 2, 3 & 4

1 & 2

133MHz

55MHz

2x

Open

Open

1 & 2

150MHz

60MHz

2x

Closed

1 & 2

1 & 2

166MHz

66MHz

2x

Closed

3 & 4

1 & 2

Note: Pins designated are in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP4

JP6

JP8

75MHz

50MHz

1.5x

Open

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

Closed

1 & 2

Open

100MHz

66MHz

1.5x

Closed

3 & 4

Open

Note: Pins designated are in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP4

JP6

JP8

75MHz

50MHz

1.5x

Open

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

Closed

1 & 2

Open

100MHz

66MHz

1.5x

Closed

3 & 4

Open

120MHz

60MHz

2x

Closed

1 & 2

1 & 2

133MHz

66MHz

2x

Closed

3 & 4

1 & 2

150MHz

60MHz

2.5x

Closed

1 & 2

1 & 2, 3 & 4

166MHz

66MHz

2.5x

Closed

3 & 4

1 & 2, 3 & 4

200MHz

66MHz

3x

Closed

3 & 4

3 & 4

Note: Pins designated are in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP9

»

3.3v

Pins 1 & 2 closed



3.5v

Pins 3 & 4 closed
