Device Type	Mainboard
Processor	CX 6X86/AM K5/AM K6/Pentium/Pentium MMX
Processor Speed	75/90/100/120/133/150/166/200MHz
Chip Set	Intel 430VX
Maximum Onboard Memory	128MB (EDO & SDRAM supported)
Cache	256/512KB
BIOS	Award
Dimensions	250mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interface(2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)

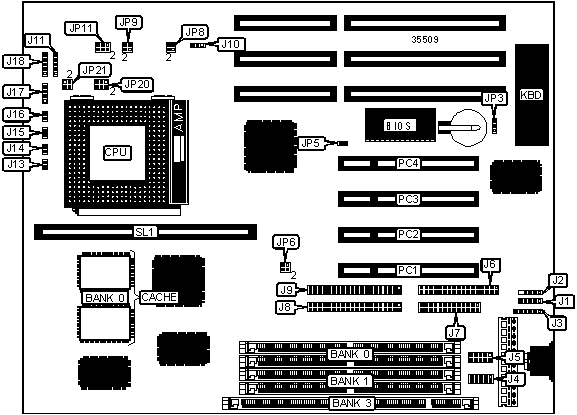

CONNECTIONS
Purpose	Location	Purpose	Location
USB connector 1	J1	IR connector	J11
USB connector 2	J2	IDE interface LED	J13
PS/2 mouse interface	J3	Greed PC LED	J14
Serial port 1	J4	Green PC connector	J15
Serial port 2	J5	Reset switch	J16
Floppy drive interface	J6	Speaker	J17
Parallel port	J7	Power LED & keylock	J18
IDE interface 1	J8	32-bit PCI slots	PC1 - PC4
IDE interface 2	J9	Cache slot	SL1
Chassis fan power	J10

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Monitor type select color	JP3	Pins 1 & 2 closed
	Monitor type select monochrome	JP3	Pins 2 & 3 closed
»	CMOS memory normal operation	JP5	Open
	CMOS memory clear	JP5	Closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
Note: Board accepts EDO memory. Banks 0 & 1 are interchangeable. SIMM and DIMM memory cannot be used together.

DIMM CONFIGURATION
Size	Bank 2
8MB	(1) 1M x 64
16MB	(1) 2M x 64
32MB	(1) 4M x 64
64MB	(1) 8M x 64
128MB	(1) 16M x 64
Note: Board accepts EDO memory. SIMM and DIMM memory cannot be used together.

CACHE CONFIGURATION
Size	Bank 0	SL1
256KB	(2) 32K x 32	None
512KB	(2) 32K x 32	256KB module installed
512KB	(2) 64K x 32	Not installed

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP6	JP8
120MHz	50MHz	2x	1 & 2, 3 & 4	1 & 2
133MHz	55MHz	2x	Open	1 & 2
150MHz	60MHz	2x	1 & 2	1 & 2
166MHz	66MHz	2x	3 & 4	1 & 2
Note: Pins designated are in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP6	JP8
75MHz	50MHz	1.5x	1 & 2, 3 & 4	Open
90MHz	60MHz	1.5x	1 & 2	Open
100MHz	66MHz	1.5x	3 & 4	Open
120MHz	60MHz	1.5x	1 & 2	Open
133MHz	66MHz	1.5x	3 & 4	Open
166MHz	66MHz	2.5x	3 & 4	1 & 2, 3 & 4
Note: Pins designated are in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP6	JP8
166MHz	66MHz	2.5x	3 & 4	1 & 2, 3 & 4
Note: Pins designated are in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP6	JP8
75MHz	50MHz	1.5x	1 & 2, 3 & 4	Open
90MHz	60MHz	1.5x	1 & 2	Open
100MHz	66MHz	1.5x	3 & 4	Open
120MHz	60MHz	2x	1 & 2	1 & 2
133MHz	66MHz	2x	3 & 4	1 & 2
150MHz	60MHz	2.5x	1 & 2	1 & 2, 3 & 4
166MHz	66MHz	2.5x	3 & 4	1 & 2, 3 & 4
200MHz	66MHz	3x	3 & 4	3 & 4
Note: Pins designated are in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP6	JP8
166MHz	66MHz	2.5x	3 & 4	1 & 2, 3 & 4
200MHz	66MHz	3x	3 & 4	3 & 4
233MHz	66MHz	3.5x	3 & 4	Open
Note: Pins designated are in the closed position.

CPU VOLTAGE SELECTION (SINGLE)
Voltage		JP9	JP11	JP20	JP21
»	3.3v	1 & 2	3 & 5, 4 & 6	3 & 4	1 & 2, 3 & 4
	3.5v	3 & 4	3 & 5, 4 & 6	3 & 4	1 & 2, 3 & 4
Note: Pins designated are in the closed position.

CPU VOLTAGE SELECTION (DUAL)
V Core	V I/O	JP9	JP11	JP20	JP21
3.3v	2.5v	1 & 2	1 & 3, 2 & 4	5 & 6	Open
3.3v	2.8v	1 & 2	1 & 3, 2 & 4	3 & 4	Open
3.3v	2.9v	1 & 2	1 & 3, 2 & 4	1 & 2	Open
Note: Pins designated are in the closed position.
