Device Type	Mainboard
Processor	Pentium
Processor Speed	60/90MHz
Chip Set	Unidentified
Video Chip Set	Cirrus Logic
Maximum Onboard Memory	72MB
Maximum Video Memory	2MB
Cache	256KB
BIOS	Unidentified
Dimensions	254mm x 218mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, riser slot
NPU Options	None

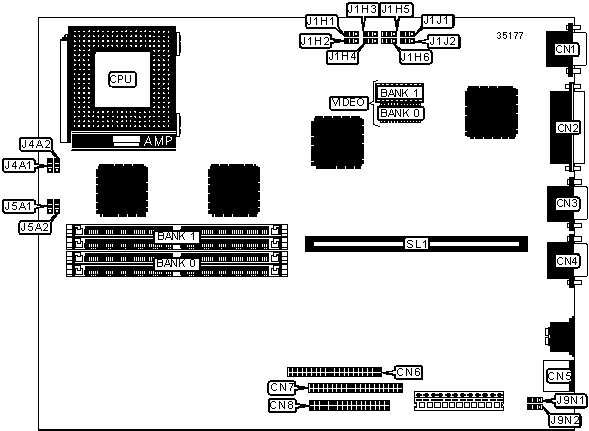

CONNECTIONS
Purpose	Location	Purpose	Location
VGA port	CN1	Floppy drive interface	CN6
Parallel port	CN2	IDE interface	CN7
Serial port	CN3	IDE interface	CN8
Serial port	CN4	Riser slot	SL1
PS/2 mouse port	CN5
Note: VGA & serial ports are shown for informational purposes only. The location may not be exact.

USER CONFIGURABLE SETTINGS
Function		Label	Position
	BIOS recovery mode enabled	J1H1	Closed
	BIOS recovery mode disabled	J1H1	Open
	BIOS upgrade enabled	J1H2	Closed
	BIOS upgrade disabled	J1H2	Open
	Setup enabled	J1H3	Closed
	Setup disabled	J1H3	Open
	Password enabled	J1H4	Closed
	Password disabled	J1H4	Open
	Monitor type select color	J1H5	Closed
	Monitor type select monochrome	J1H5	Open
»	Factory configured - do not alter	J1H6	Unidentified
»	Factory configured - do not alter	J1J1	Unidentified
»	Factory configured - do not alter	J1J2	Unidentified
»	Factory configured - do not alter	J5A1	Unidentified
	Turbo enabled	J5A2	Closed
	Turbo disabled	J5A2	Open
»	Factory configured - do not alter	J9N1	Unidentified
»	Factory configured - do not alter	J9N2	Unidentified

SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	None	None	8MB
16MB	(2) 1M x 36	(2) 1M x 36	8MB
24MB	(2) 2M x 36	(2) 2M x 36	8MB
40MB	(2) 4M x 36	(2) 4M x 36	8MB
72MB	(2) 8M x 36	(2) 8M x 36	8MB
Note: Bank 2 is factory installed with 8MB. The location is unidentified.

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
1MB	(1) 256K x 16	None
2MB	(1) 256K x 16	(1) 256K x 16

FAN SPEED SELECTION
Setting	J4A1	J4A2
Slow	Closed	Open
Fast	Open	Closed
